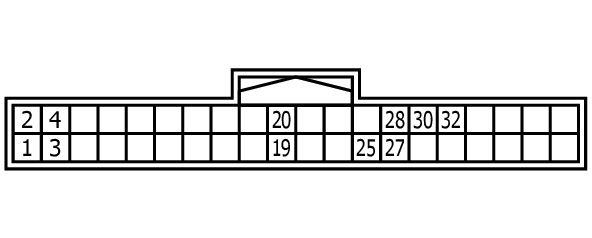

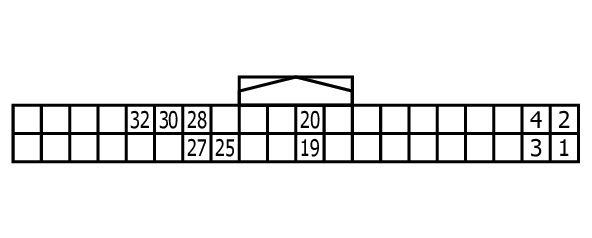

Around View Monitor Control Unit Connector End View (M48)
Connector Types: TH40FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | B | GND |
| 2 | Y/G | BATTERY POWER SUPPLY |
| 3 | GR/L | IGNITION SIGNAL |
| 4 | V | ACC POWER SUPPLY |
| 19 | SB | AV COMM (H) |
| 20 | LG | AV COMM (L) |
| 25 | P | REVERSE |
| 27 | L | CAN-H |
| 28 | P | CAN-L |
| 30 | LG | RETRACT MOTOR OPERATION SIGNAL (OPEN) |
| 32 | G/O | RETRACT MOTOR OPERATION SIGNAL (CLOSE) |
