4WD Models

Fig 1: Transmission Unit Disassembly And Assembly With Torque Specifications - 4WD

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Torque converter	2.	Converter housing	3.	Oil pump housing oil seal
4.	Oil pump housing	5.	O-ring	6.	Oil pump cover
7.	O-ring	8.	D-ring	9.	D-ring
10.	Front brake piston	11.	Front brake spring retainer	12.	Snap ring
13.	D-ring	14.	D-ring	15.	2346 brake piston
16.	2346 brake spring retainer	17.	Snap ring	18.	Seal ring
19.	2346 brake dish plate	20.	2346 brake driven plate	21.	2346 brake drive plate
22.	2346 brake retaining plate	23.	Snap ring	24.	Bearing race
25.	Needle bearing	26.	Under drive sun gear	27.	Needle bearing
28.	Front brake retaining plate	29.	Front brake drive plate	30.	Front brake driven plate
31.	Front brake retaining plate	32.	Snap ring	33.	1st one-way clutch
34.	Snap ring	35.	Under drive carrier assembly	36.	Front brake hub assembly
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Apply ATF
: Apply Genuine RTV silicone sealant or equivalent. Refer to HOW TO USE THIS INFORMATION : Recommended Chemical Products and Sealants .
	: Apply petroleum jelly
	: Select with proper thickness.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Needle bearing	2.	Snap ring	3.	Front carrier assembly
4.	Needle bearing	5.	O-ring	6.	Seal ring
7.	Input clutch assembly	8.	Rear internal gear	9.	Needle bearing
10.	Mid carrier assembly	11.	Needle bearing	12.	Bearing race
13.	Rear carrier assembly	14.	Needle bearing	15.	Mid sun gear
16.	Seal ring	17.	Rear sun gear	18.	2nd one-way clutch
19.	Snap ring	20.	Needle bearing	21.	High and low reverse clutch hub
22.	Snap ring	23.	Bearing race	24.	Bearing race
25.	Needle bearing
	: Always replace after every disassembly.
	: Apply ATF
	: Apply petroleum jelly

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bearing race	2.	High and low reverse clutch assembly	3.	Needle bearing
4.	Direct clutch assembly	5.	Needle bearing	6.	Reverse brake dish plate
7.	Reverse brake dish plate	8.	Reverse brake driven plate	9.	N-spring
10.	Snap ring	11.	Reverse brake retaining plate	12.	Reverse brake drive plate
13.	Snap ring	14.	Reverse brake spring retainer	15.	Reverse brake return spring
16.	Reverse brake piston	17.	D-ring	18.	D-ring
	: Always replace after every disassembly.
	: Apply ATF
	: Apply petroleum jelly
	: Select with proper thickness.

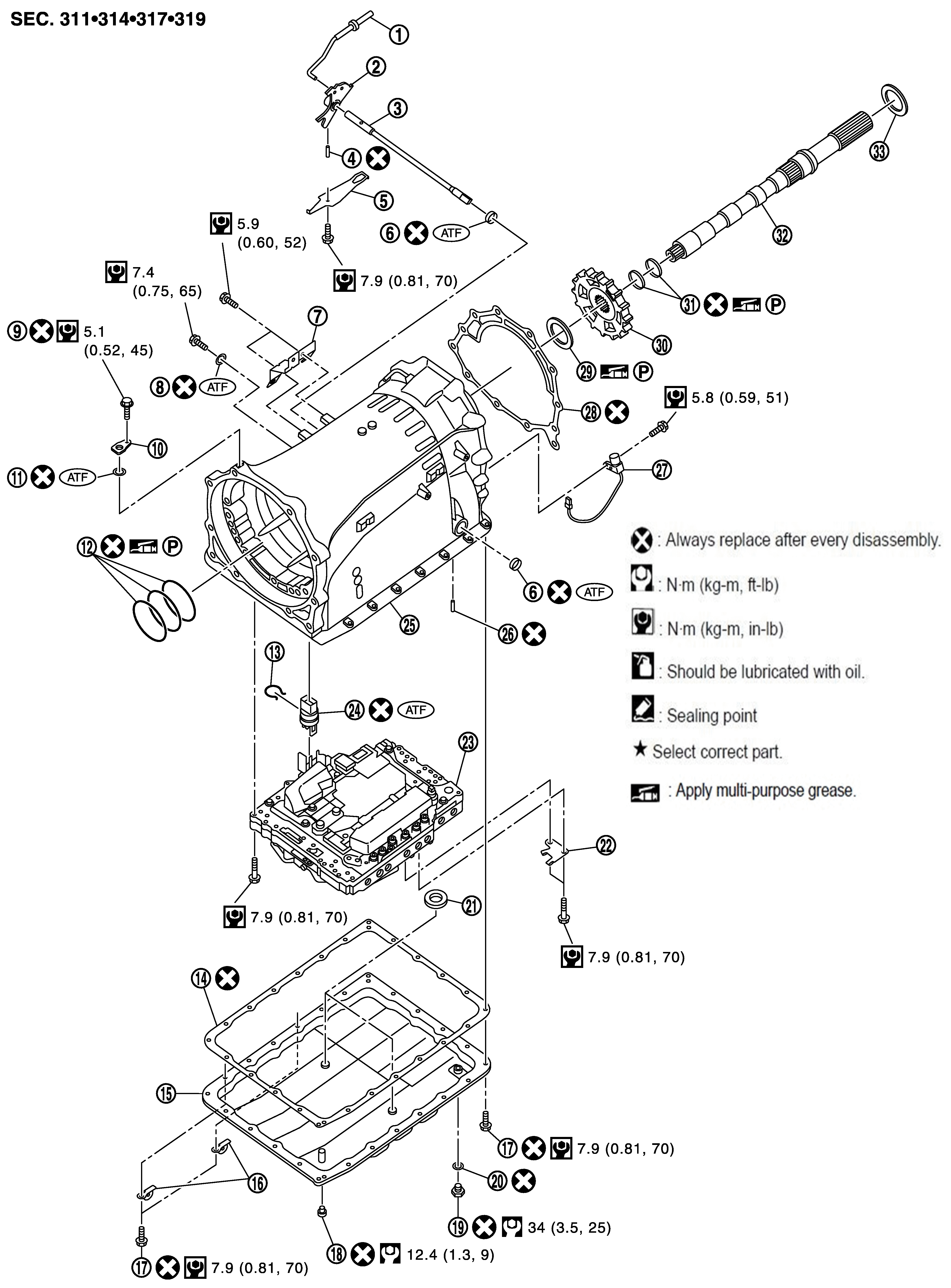

Fig 2: Transmission Case Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Parking rod	2.	Manual plate	3.	Manual shaft
4.	Retaining pin	5.	Detent spring	6.	Oil seal
7.	Bracket	8.	O-ring	9.	Self-sealing bolt
10.	Baffle plate	11.	O-ring	12.	Seal ring
13.	Snap ring	14.	Oil pan gasket	15.	Oil pan
16.	Clip	17.	Oil pan mounting bolt	18.	Overflow plug
19.	Drain plug	20.	Drain plug gasket	21.	Magnet
22.	Clip	23.	Control valve & TCM	24.	Joint connector
25.	Transmission case	26.	Retaining pin	27.	Output speed sensor
28.	Gasket	29.	Needle bearing	30.	Parking gear
31.	Seal ring	32.	Output shaft	33.	Bearing race
	: Always replace after every disassembly.
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Apply ATF
	: Apply petroleum jelly

Fig 3: Extension Housing Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Parking actuator support	2.	Parking pawl	3.	Pawl shaft
4.	Return spring	5.	Needle bearing	6.	Adapter case
7.	Self-sealing bolt	8.	Rear oil seal	9.	Bracket
	: Always replace after every disassembly.
	: N.m (kg-m, ft-lb)
	: Apply ATF
	: Apply petroleum jelly

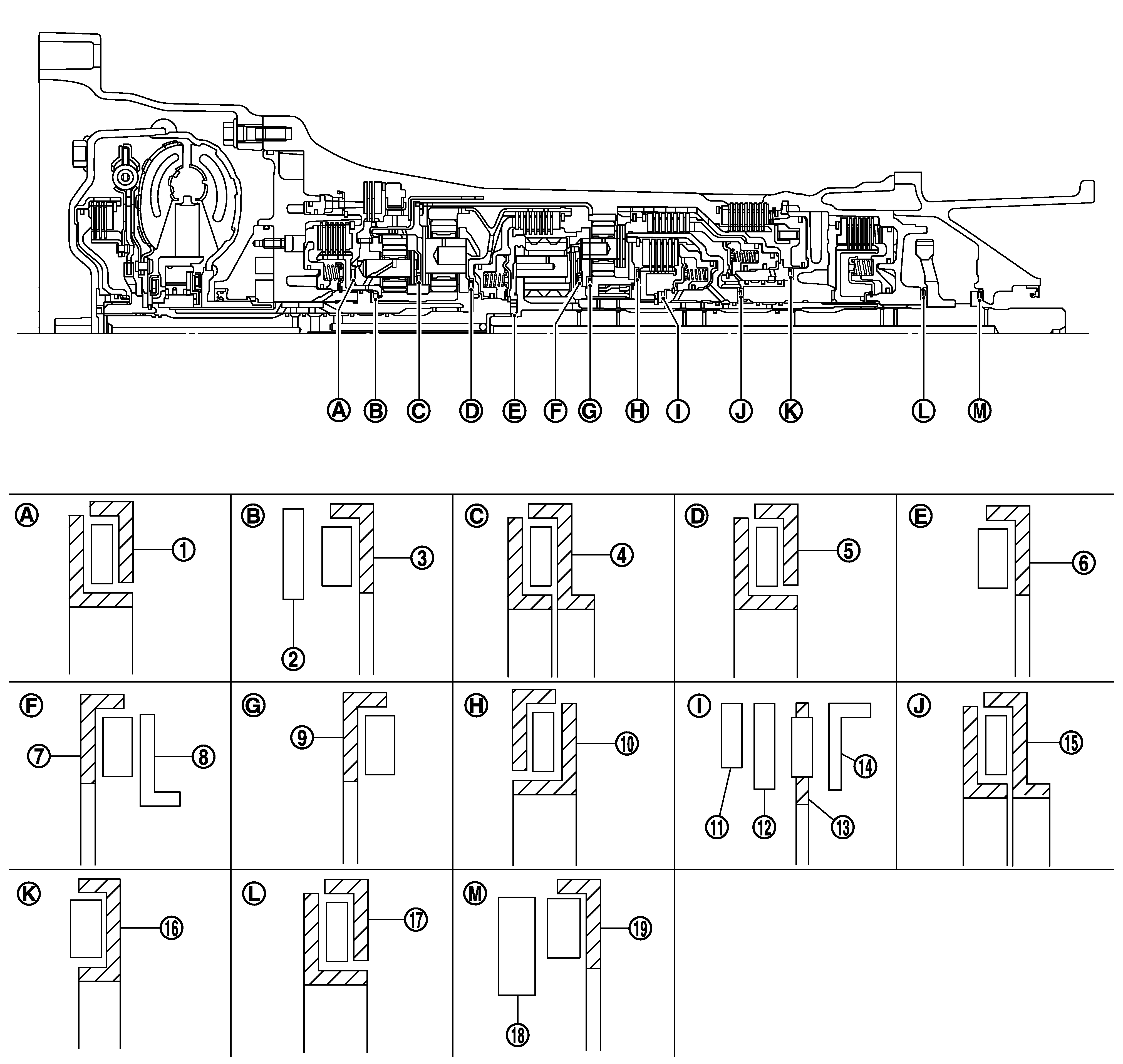

Courtesy of NISSAN NORTH AMERICA, INC.

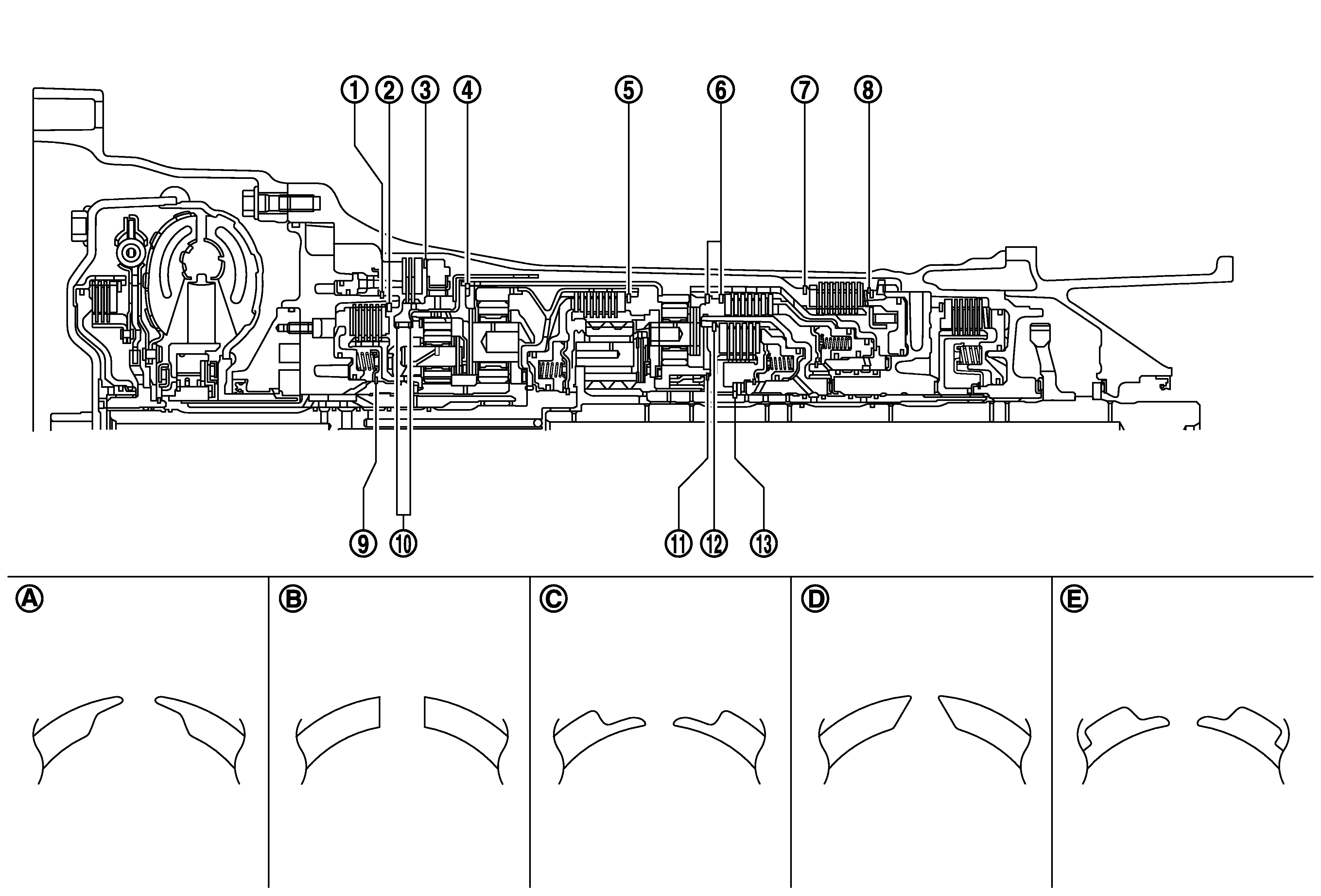

Courtesy of NISSAN NORTH AMERICA, INC.
