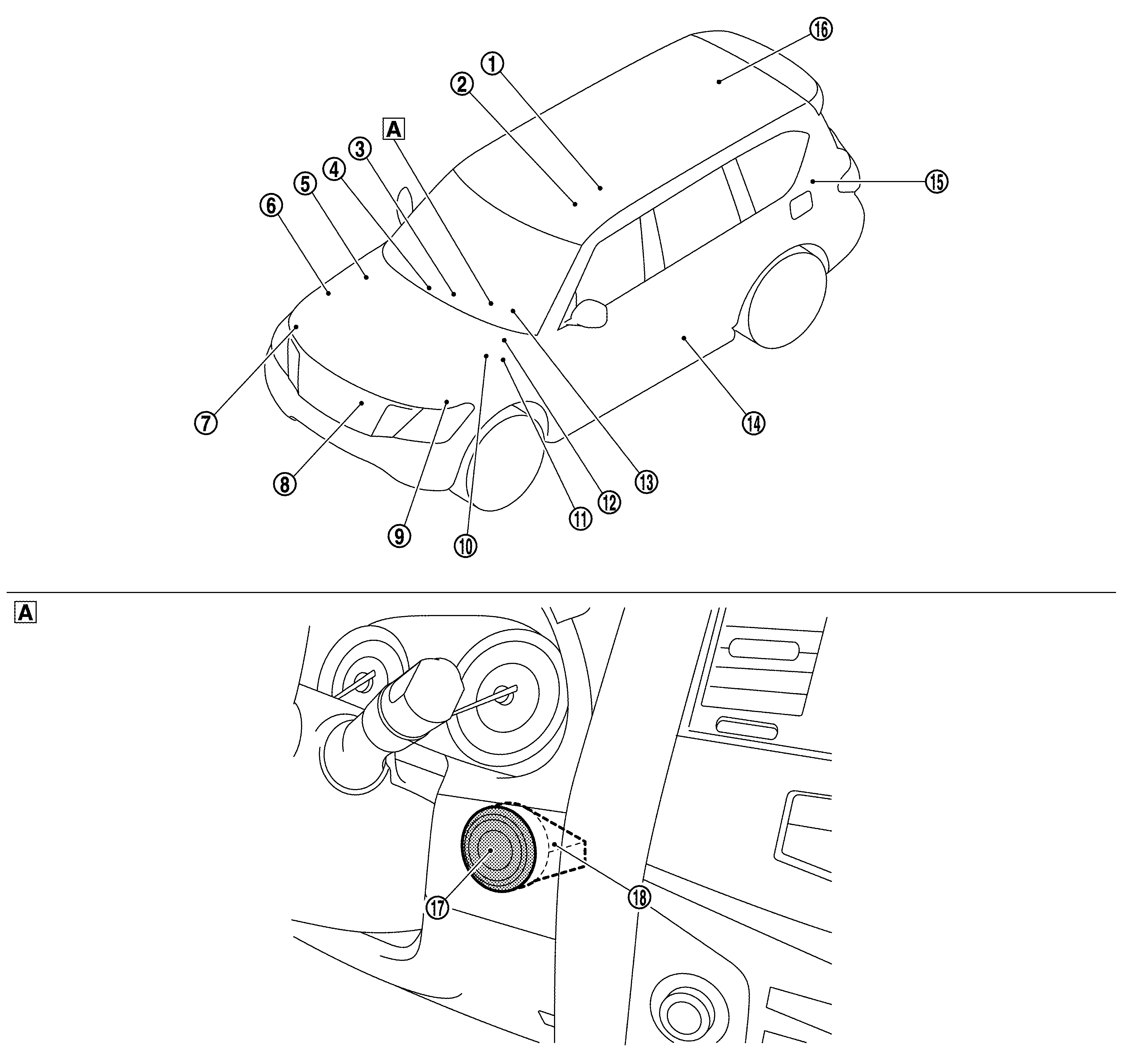

Component Location

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Inside key antenna (console) Refer to Component Location .	2.	A/T assembly Refer to Component Location .	3.	Inside key antenna (instrument center) Refer to Component Location .
4.	TCU Component Location	5.	IPDM E/R Refer to Component Location .	6.	ECM Refer to Component Location .
7.	Hood switch 1	8.	Horn	9.	Hood switch 2
10.	ABS actuator and electric unit (control unit) Refer to Component Location .	11.	Stop lamp switch Refer to Component Location .	12.	BCM Refer to Component Location .
13.	Combination meter Refer to Component Location .	14.	Front door switch (driver side) Refer to Component Location .	15.	Remote keyless entry receiver Refer to Component Location .
16	Inside key antenna (luggage room) Refer to Component Location .	17.	Push-button ignition switch	18.	NATS antenna amp.
A.	Behind push-button ignition switch

Component	Reference
A/T shift selector (detention switch)	Refer to Component Description .
BCM	Refer to Component Description .
ECM	Refer to Component Description .
IPDM E/R	Refer to Component Description .
NATS antenna amp.	Refer to Component Description .
TCM	Refer to Component Description .
Combination meter	Refer to Component Description .
Door switch	Refer to Component Description .
Hood switch	Refer to Component Description .
Inside key antenna	Refer to Component Description .
Intelligent Key	Refer to Component Description .
Push-button ignition switch	Refer to Component Description .
Remote keyless entry receiver	Refer to Component Description .
Security indicator lamp	Refer to Component Description .
Starter control relay	Refer to Component Description .
Starter relay	Refer to Component Description .
Stop lamp switch	Refer to Component Description .
Transmission range switch	Refer to Component Description .
Vehicle information display	Refer to Component Description .
TCU	Refer to Component Description .
