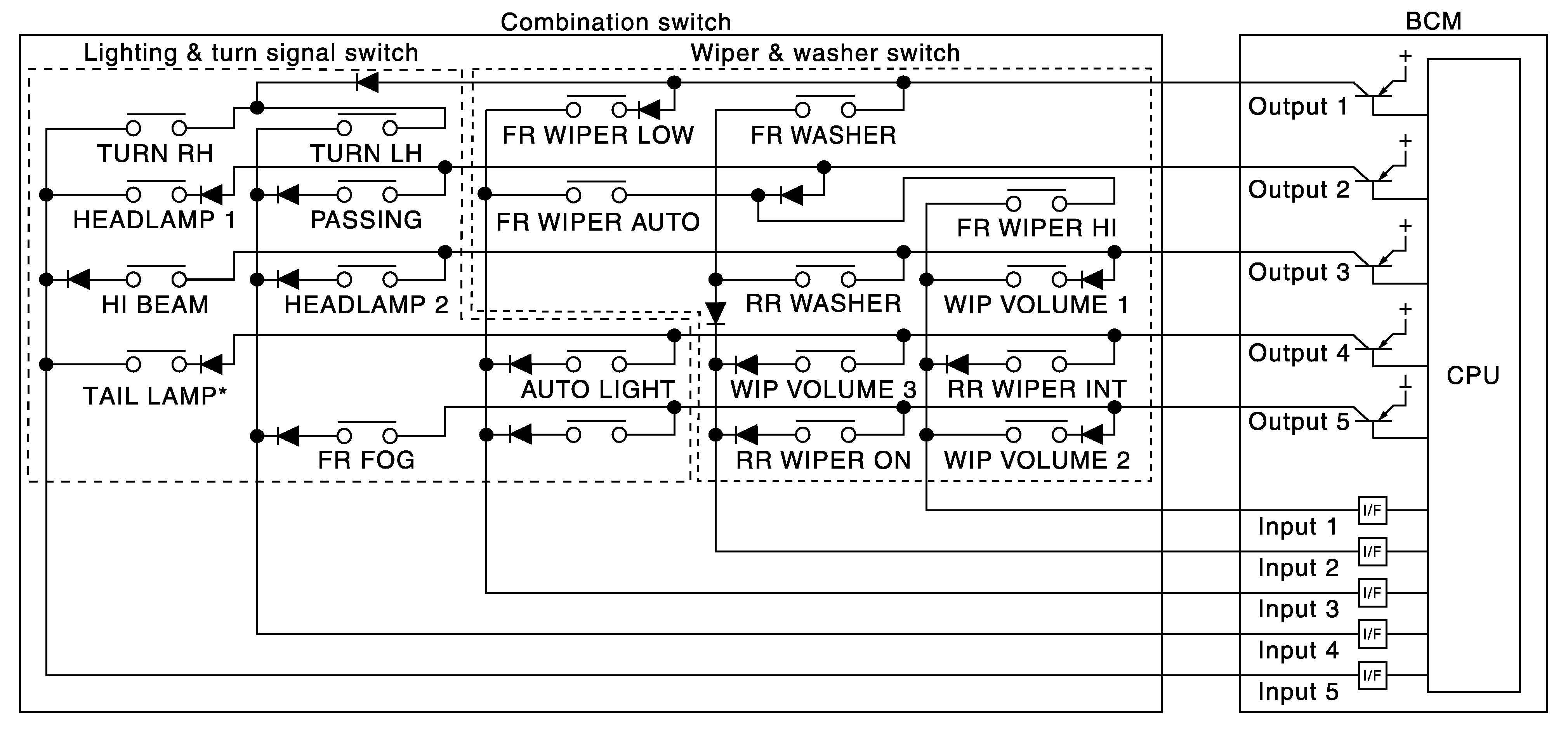

Combination Switch Matrix
NOTE:
*: TAIL LAMP switch links lighting switch 1ST and 2ND positions.
Combination switch INPUT-OUTPUT system list
|
System |
INPUT 1 |
INPUT 2 |
INPUT 3 |
INPUT 4 |
INPUT 5 |
|
OUTPUT 1 |
-- |
FR WASHER |
FR WIPER LOW |
TURN LH |
TURN RH |
|
OUTPUT 2 |
FR WIPER HI |
-- |
FR WIPER AUTO |
PASSING |
HEADLAMP 1 |
|
OUTPUT 3 |
WIP VOLUME 1 |
RR WASHER |
-- |
HEADLAMP 2 |
HI BEAM |
|
OUTPUT 4 |
RR WIPER INT |
WIP VOLUME 3 |
AUTO LIGHT |
-- |
TAIL LAMP |
|
OUTPUT 5 |
WIP VOLUME 2 |
RR WIPER ON |
-- |
FR FOG |
-- |
NOTE:
Headlamp has a dual system switch.
