Component Location

WARNING: This page is about a different car, the 2020 Infiniti QX80. However, it is still accessible from the selected car via links, so may be relevant.

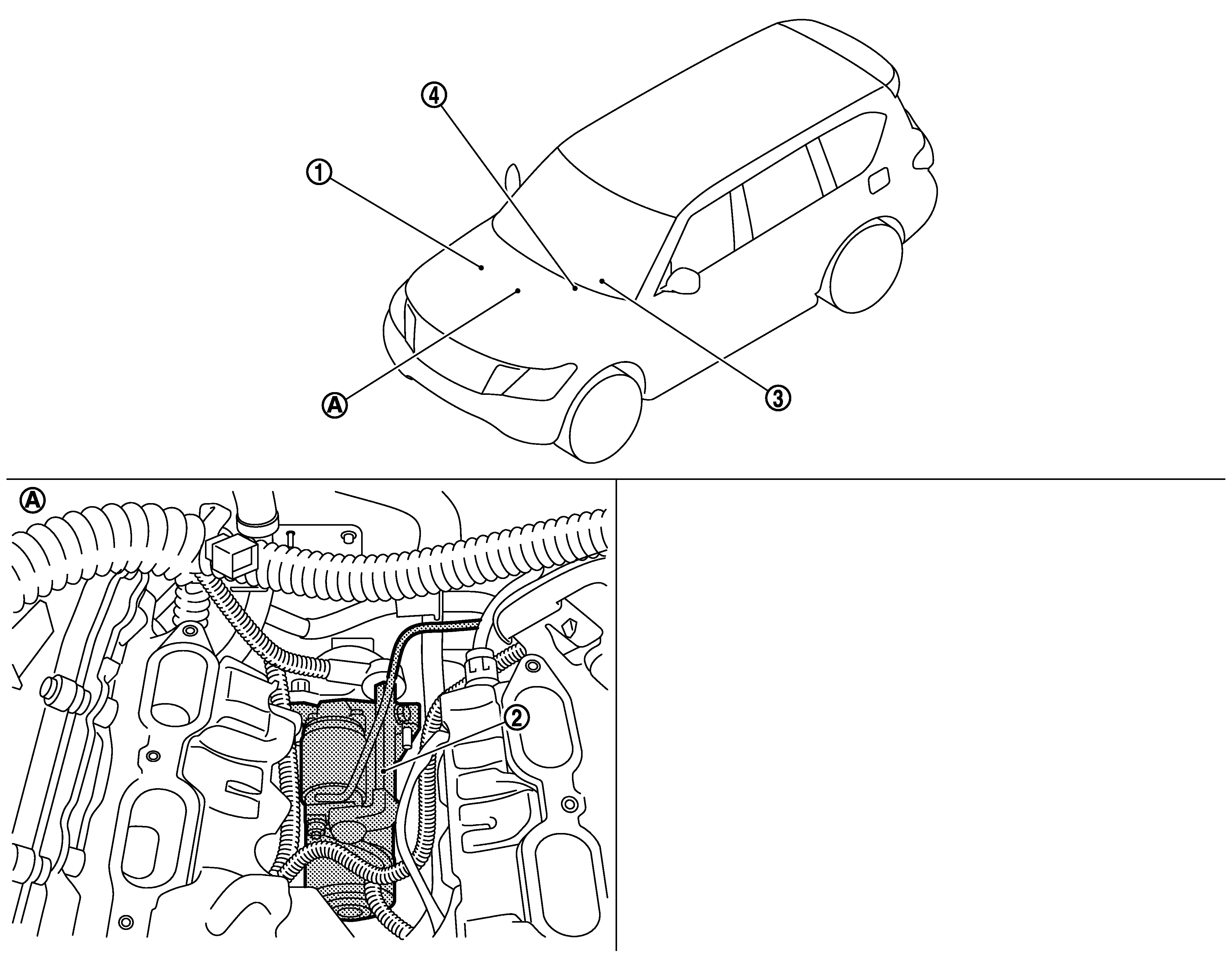

GNSJMBIA2982Z-982Courtesy of NISSAN NORTH AMERICA, INC.

1.

IPDM E/R

Refer to Component Location .

2.

Starter motor

3.

TCM

Refer to Component Location .

4.

BCM

Refer to Component Location .

A.

Engine
