System Diagram

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

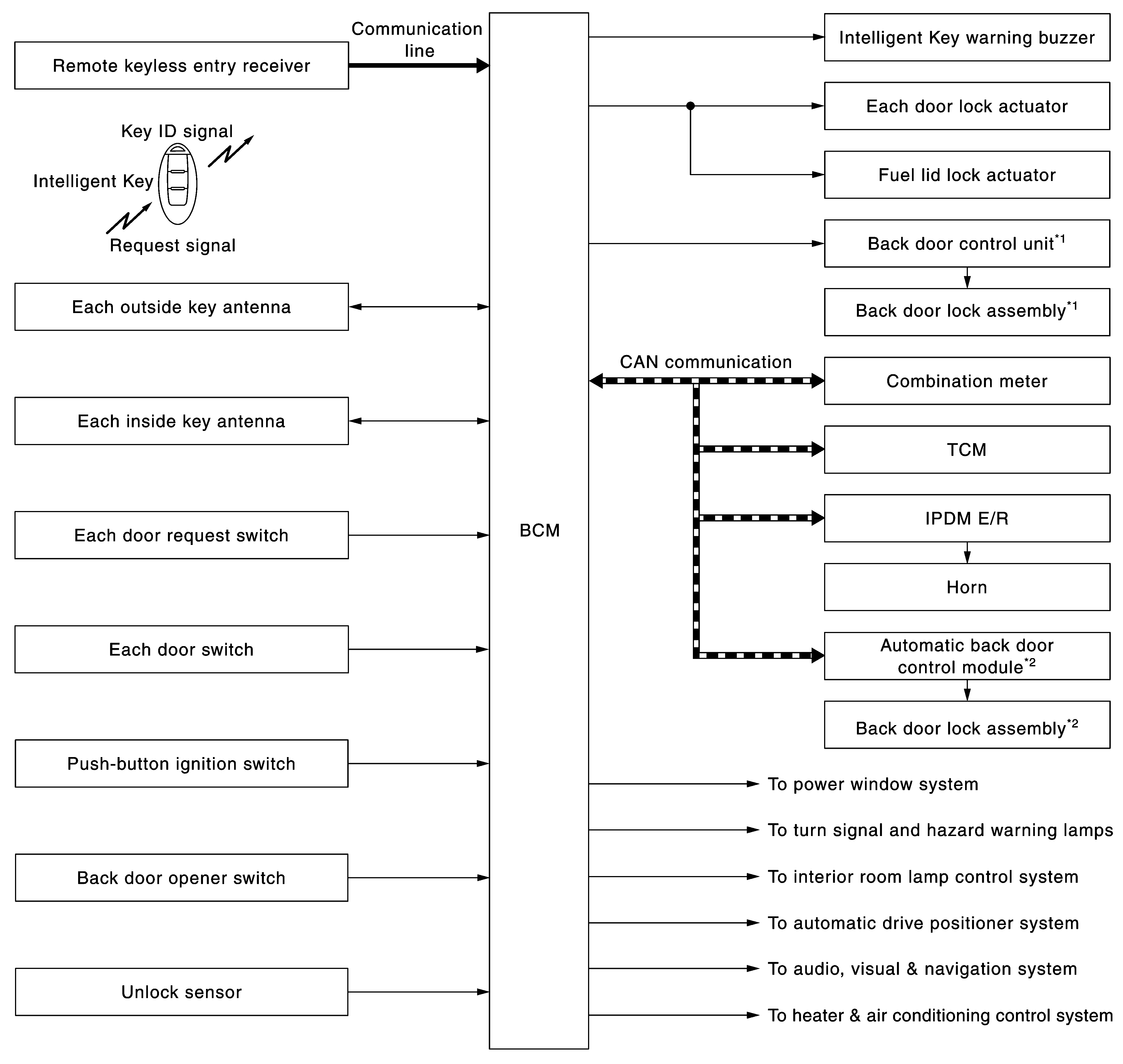

GNSJMKIA8662GB-662Courtesy of NISSAN NORTH AMERICA, INC.

* 1 : With back door auto closure system models

* 2 : With automatic back door system models
