Work Procedure

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be careful of traffic conditions and safety around the vehicle when performing road test.

CAUTION: Fully understand the following items well before the road test;

Precautions: Refer to Intelligent Back-up Intervention system service .
System description for Intelligent Back-up Intervention: Refer to System Description .
Normal operating condition: Refer to Description .

CHECK INTELLIGENT BACK-UP INTERVENTION SYSTEM SETTING
Check the sonar system operation. Refer to System Description .

GO TO 2 .
CHECK INTELLIGENT BACK-UP INTERVENTION SYSTEM SETTING
1. Start the engine.
2. Check that the Intelligent Back-up Intervention system setting can be enabled/disabled on the integral switch.
3. Turn OFF the ignition switch and wait for 30 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
GO TO 3 .

ACTION TEST FOR INTELLIGENT BACK-UP INTERVENTION

Enable the setting of the Intelligent Back-up Intervention system on the integral switch.

Check the Intelligent Back-up Intervention operation according to the following table.

Vehicle condition		Action	Indication on the combination meter	Buzzer
0 km/h (0 MPH) R range	If the radar detects an approaching vehicle from the side	Chime sound (single beep) Flashes Blind Spot Warning/Intelligent Blind Spot Intervention indicator on the side of the approaching vehicle is detected Yellow rectangular frame appears in the display	Courtesy of NISSAN NORTH AMERICA, INC.	Single beep
	No approaching vehicle	No action	Courtesy of NISSAN NORTH AMERICA, INC.	-

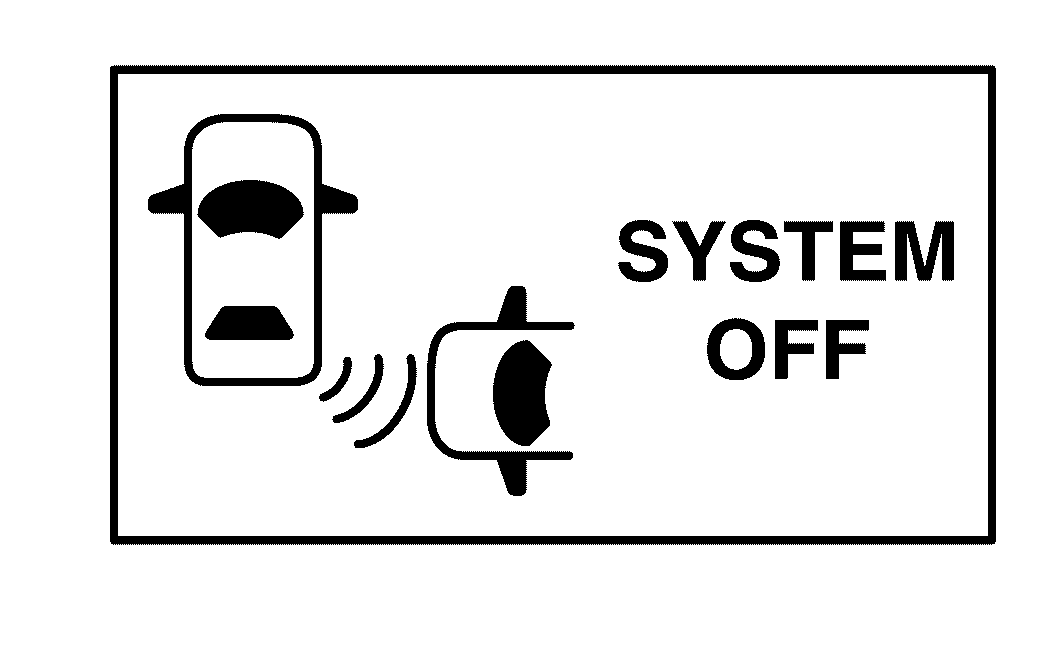

	No approaching vehicle	Intelligent Back-up Intervention system OFF	Courtesy of NISSAN NORTH AMERICA, INC.	-

INSPECTION END
