Switch Name and Function

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

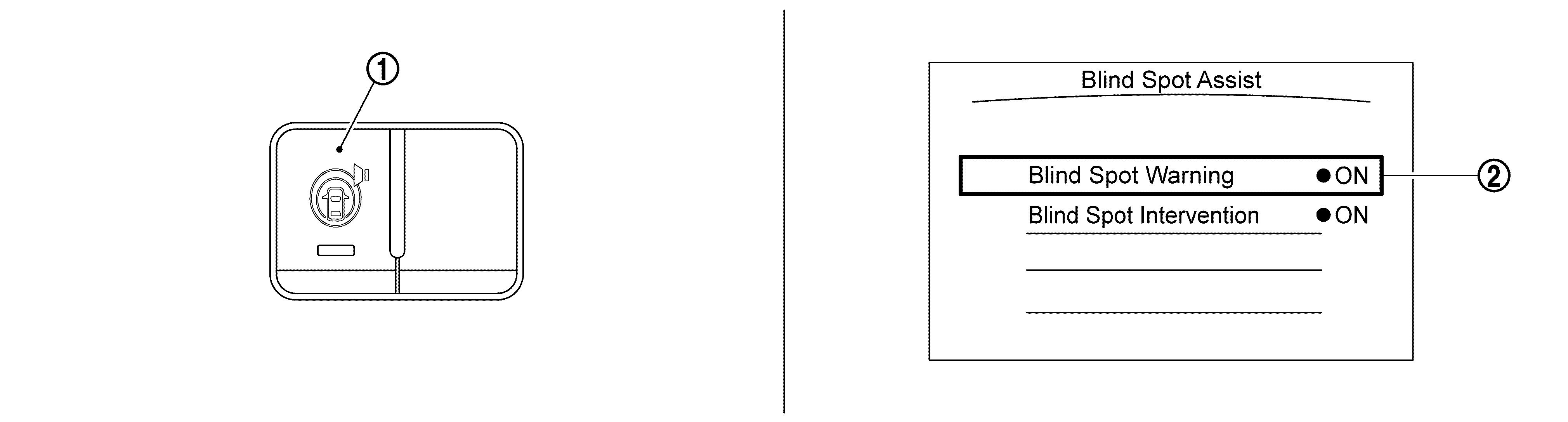

GNSILL0104608-608Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

SYMBOL

Warning systems switch

Turns BSW systems ON/OFF

(When the setting of BSW system on the integral switch setting screen is ON)

SYMBOL

BSW system setting screen

(Integral switch settings screen)

The setting of BSW system can be switched between ON and OFF
