System Display

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

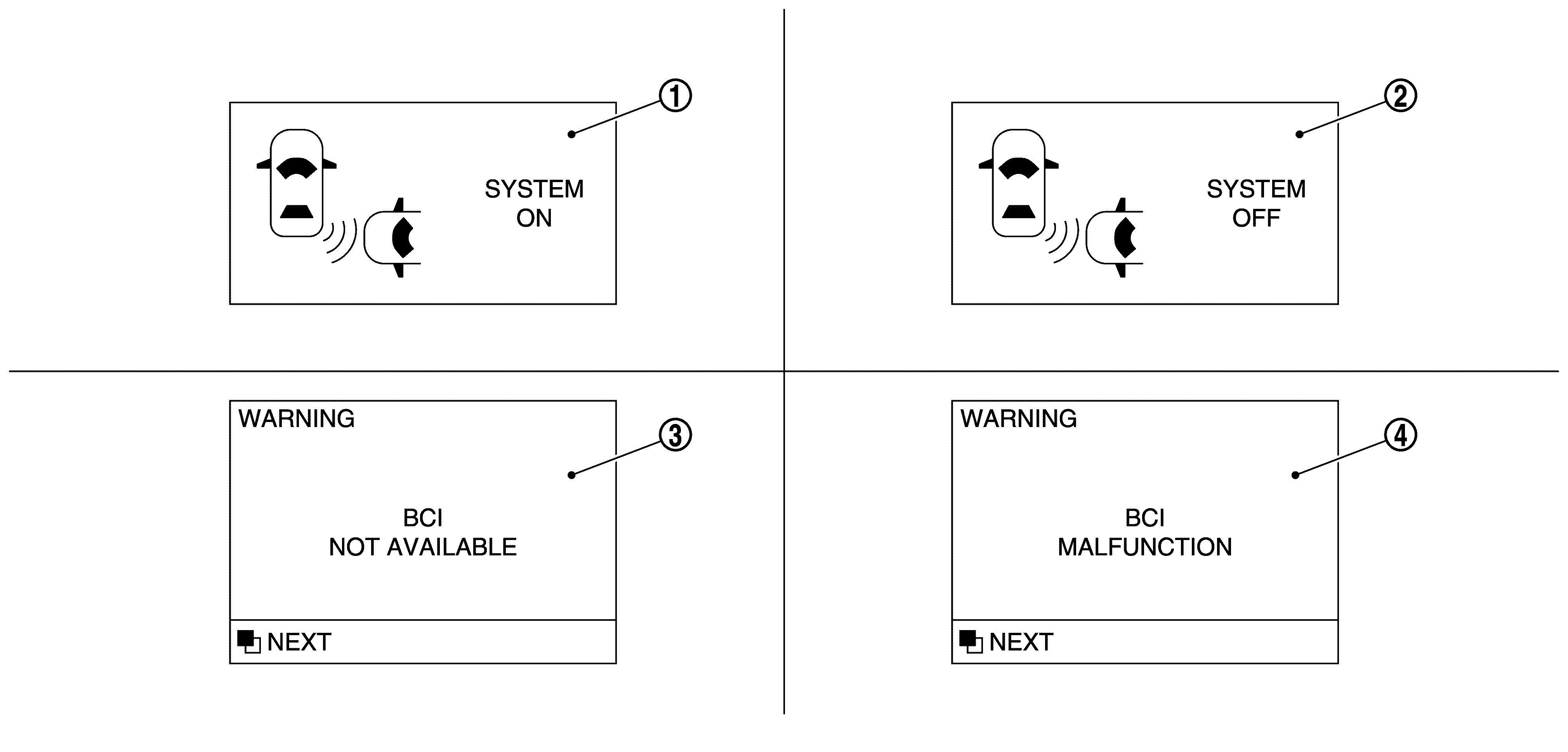

GNSJSOIA0962Z-962Courtesy of NISSAN NORTH AMERICA, INC.

No.

Name

Description

SYMBOL

Intelligent Back-up Intervention ON indicator

Turns ON when the selector lever is placed in "R" position.

SYMBOL

Intelligent Back-up Intervention OFF indicator

Turns OFF when the selector lever is placed in "R" position.

SYMBOL

Intelligent Back-up Intervention not available indicator

Turns ON when the following conditions are satisfied:

  • When the accelerator pedal actuator detects that the internal motor temperature is high [over approximately 100°C (212°F)].
  • When radar blockage is detected.

SYMBOL

Intelligent Back-up Intervention malfunction indicator

Turns ON when Intelligent Back-up Intervention system is malfunctioning.
