Combination Switch Matrix

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

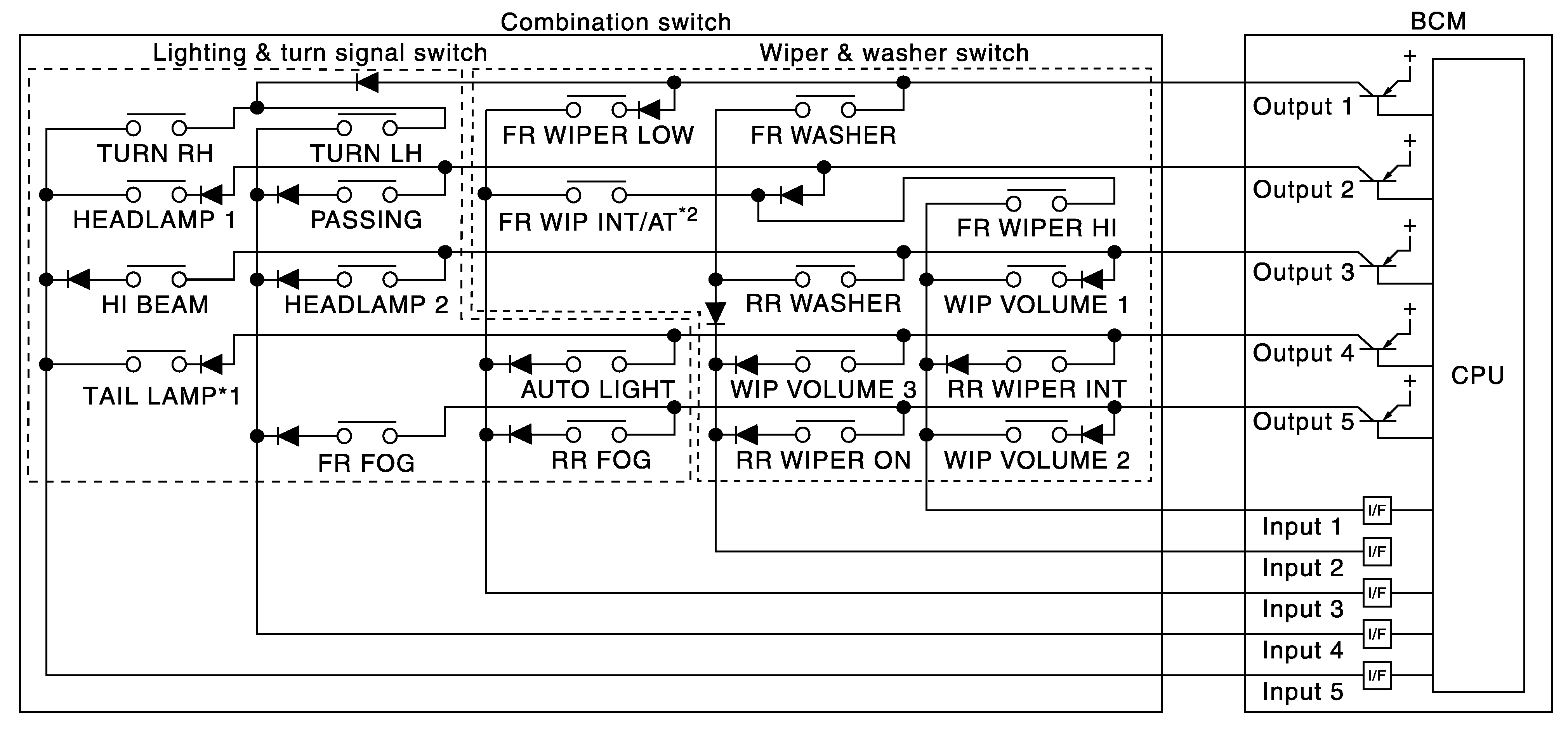

Fig 1: Combination switch circuit

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

* ¹ : TAIL LAMP switch links lighting switch 1ST and 2ND positions.
* ² : "FR WIP INT/AT" is FR WIPER INT/AUTO.
RR FOG is not applicable

Combination switch INPUT-OUTPUT system list

System	INPUT 1	INPUT 2	INPUT 3	INPUT 4	INPUT 5
OUTPUT 1	-	FR WASHER	FR WIPER LOW	TURN LH	TURN RH
OUTPUT 2	FR WIPER HI	-	FR WIPER INT/AUTO	PASSING	HEADLAMP 1
OUTPUT 3	WIP VOLUME 1	RR WASHER	-	HEADLAMP 2	HI BEAM
OUTPUT 4	RR WIPER INT	WIP VOLUME 3	AUTO LIGHT	-	TAIL LAMP
OUTPUT 5	WIP VOLUME 2	RR WIPER ON	-	FR FOG	-

NOTE: Headlamp has a dual system switch.
