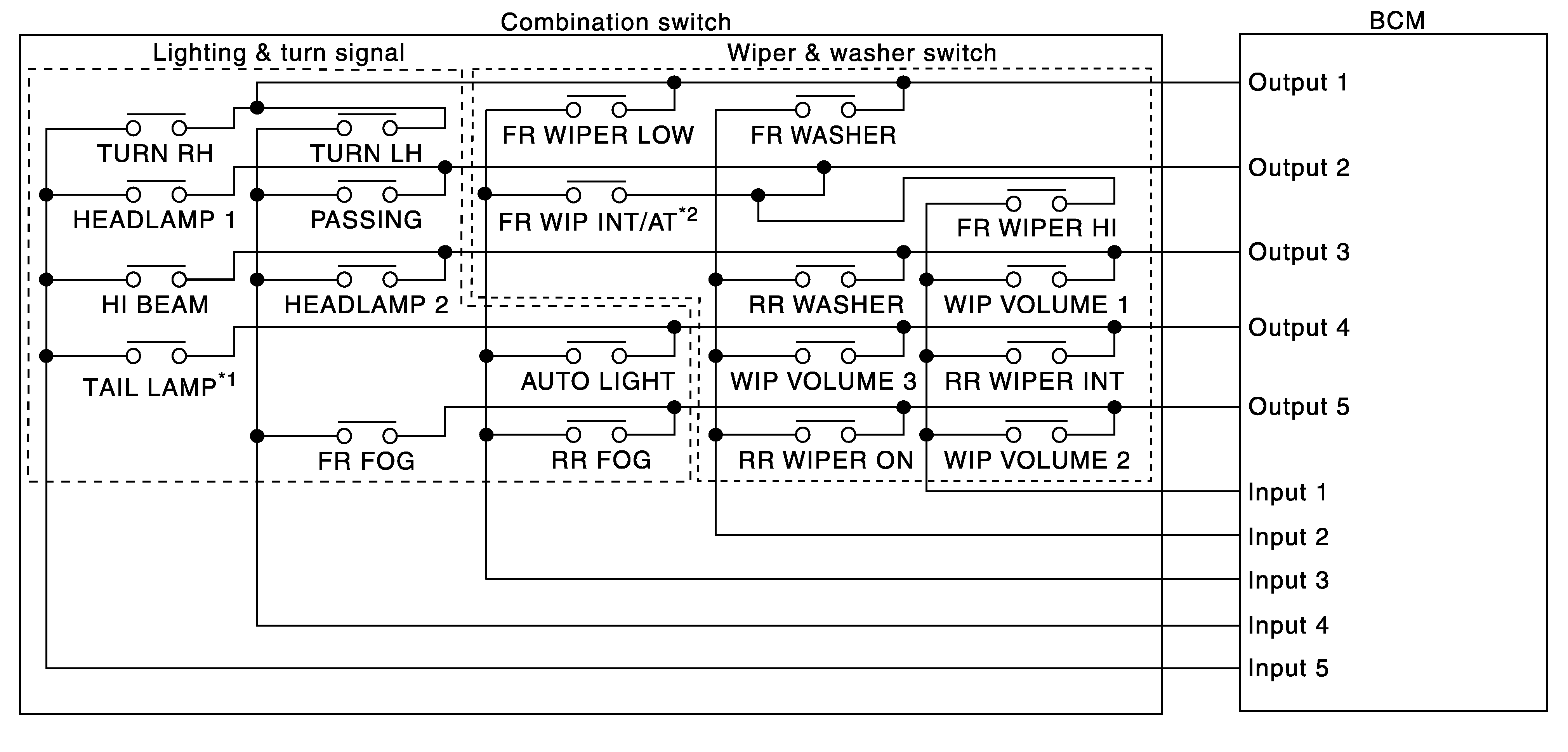

System Diagram

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

NOTE:

* ¹ : TAIL LAMP switch links lighting switch 1ST and 2ND positions.
* ² : "FR WIP INT/AT" is FR WIPER INT/AUTO.
RR FOG is not applicable
