System Diagram

WARNING: This page is about a different car, the 2019 Nissan Armada and 2018 Nissan Armada. However, it is still accessible from the selected car via links, so may be relevant.

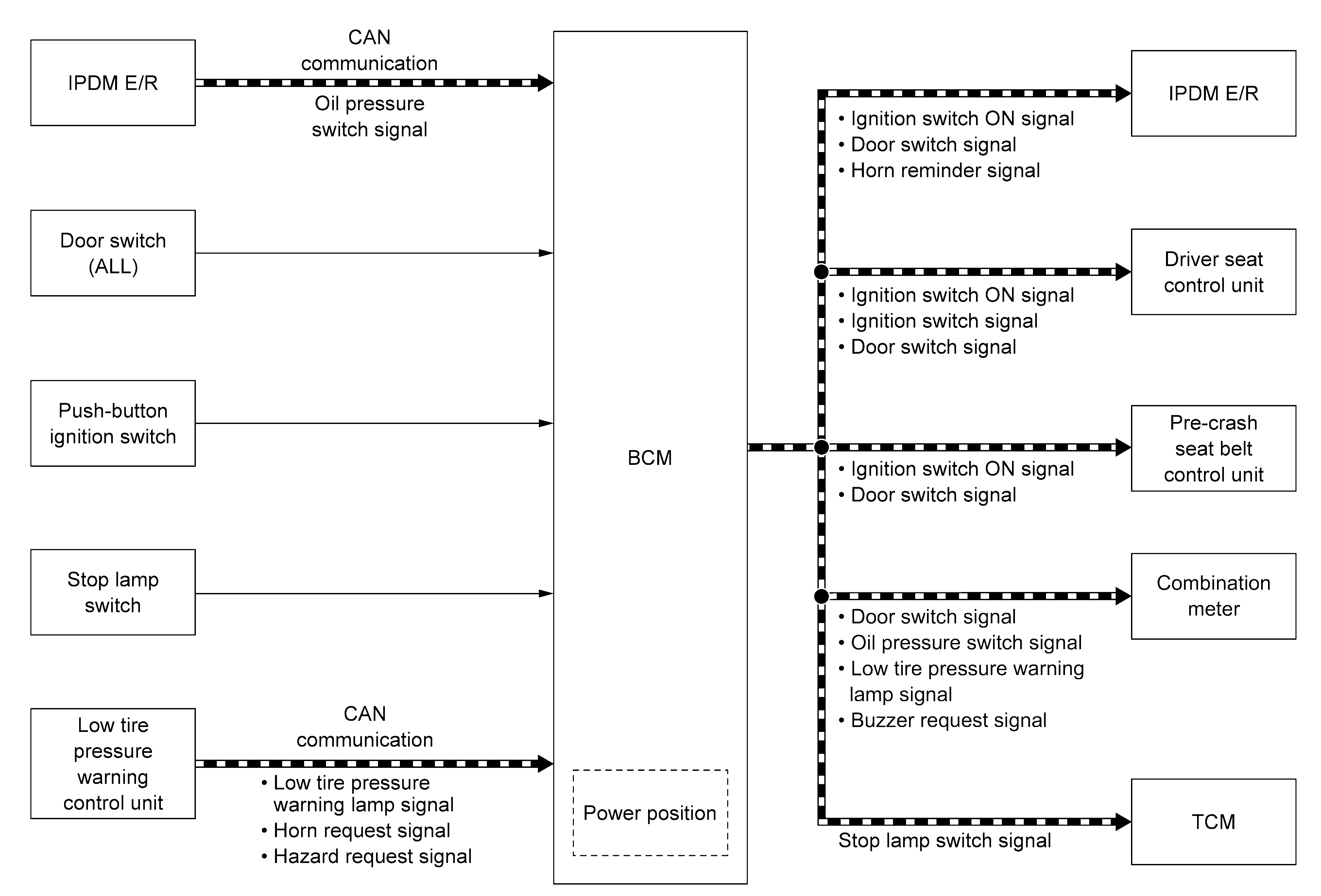

GNSILL0205983-983Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Pre-crash seat belt control unit is not used
