Switch Name and Function

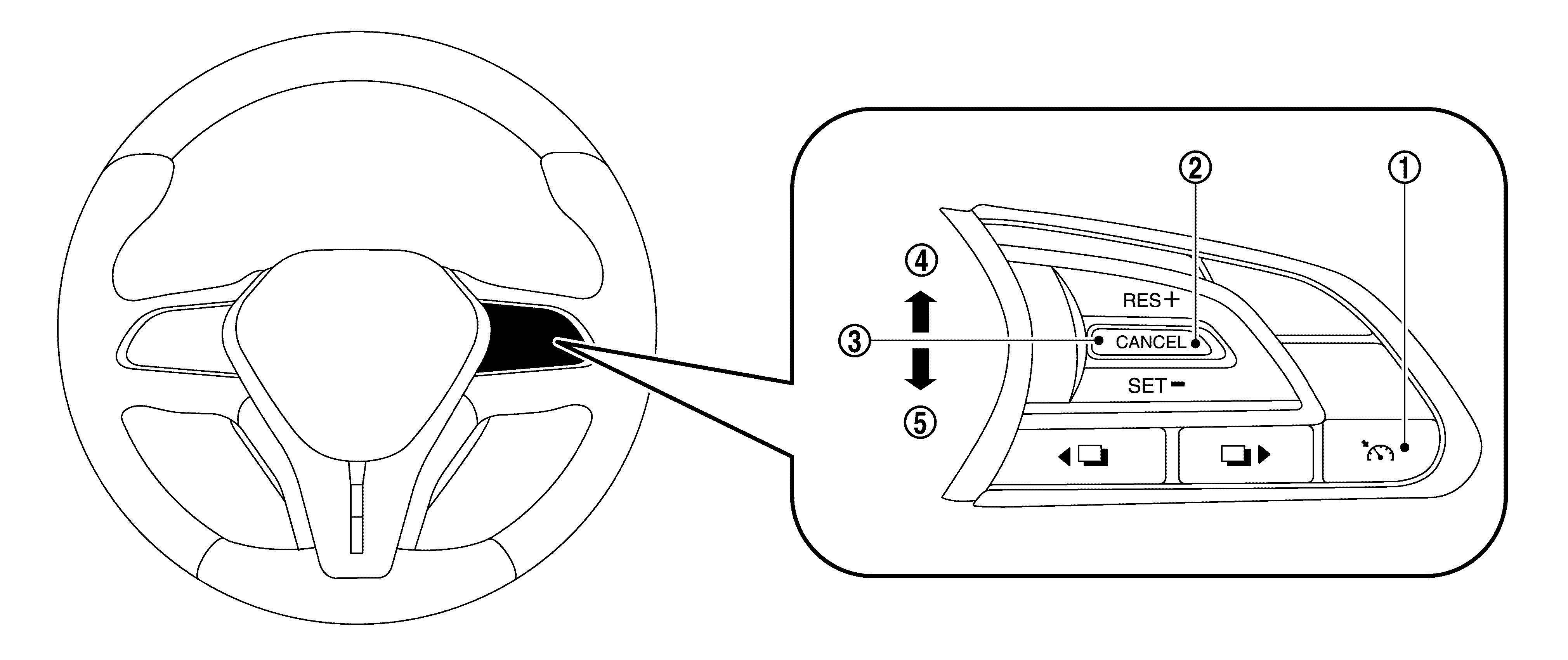

GNSJSOIA2539Z-539Courtesy of NISSAN NORTH AMERICA, INC.

No.

Description

Function

SYMBOL

ASCD MAIN switch

Master switch to activate the system

SYMBOL

CANCEL switch

Deactivates system without erasing set speed

SYMBOL

RESUME/ACCELERATE switch

Resumes set speed or increases speed incrementally

SYMBOL

SET/COAST switch

Sets desired cruise speed or reduces speed incrementally
