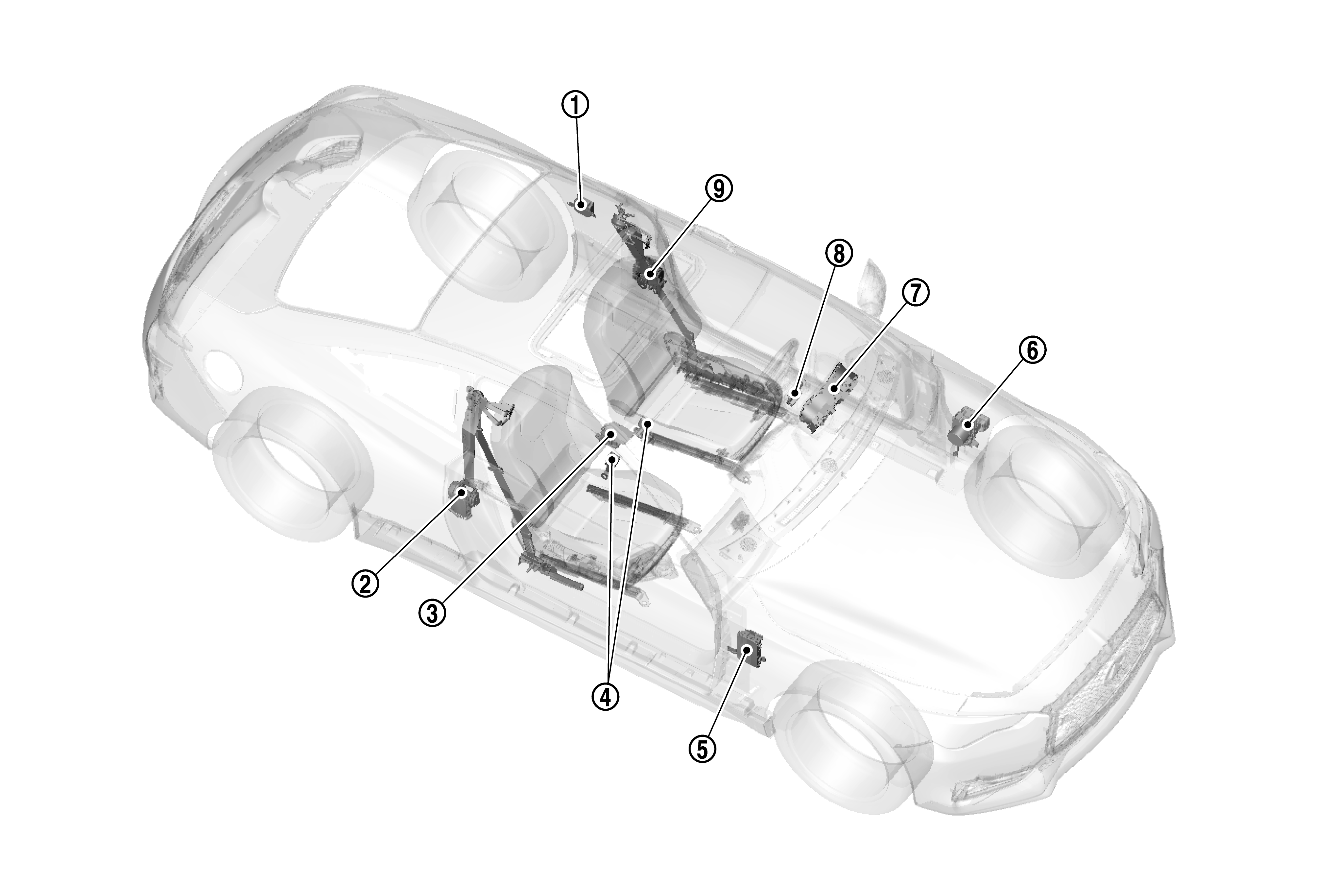

Component Parts Location

No.

Component

Function

ADAS control unit

Forward emergency braking operation signal is received from ADAS control unit via CAN communication. Refer to Component Parts Location for detailed installation location.

Pre-crash seat belt control unit (passenger side)

Refer to Pre-crash Seat Belt Control Unit .

Air bag diagnosis sensor unit*

• Pre-roll over signal is received from air bag diagnosis sensor unit via CAN communication.
• Pre-tensioner operation signal is received from air bag diagnosis sensor unit via CAN communication.
• Refer to Component Parts Location for detailed installation location.

Seat belt buckle switch

Refer to Seat Belt Buckle Switch .

BCM

Ignition switch ON signal, sleep/wakeup signal, and door switch signal are received from BCM via CAN communication. Refer to Component Parts Location for detailed installation location.

ABS actuator and electric unit (control unit)

ABS operation signal is received from ABS actuator and electric unit (control unit) via CAN communication.

Refer to Component Parts Location for detailed installation location.

Combination meter

Transmits vehicle speed signal to pre-crash seat belt control unit (driver side).

Steering angle sensor

Steering angle sensor signal, steering angle speed signal, steering angle sensor neutral position adjustment completion signal, and steering angle sensor malfunction signal are received via CAN communication.

Refer to Component Parts Location for detailed installation location.

Pre-crash seat belt control unit (driver side)

Refer to Pre-crash Seat Belt Control Unit .
