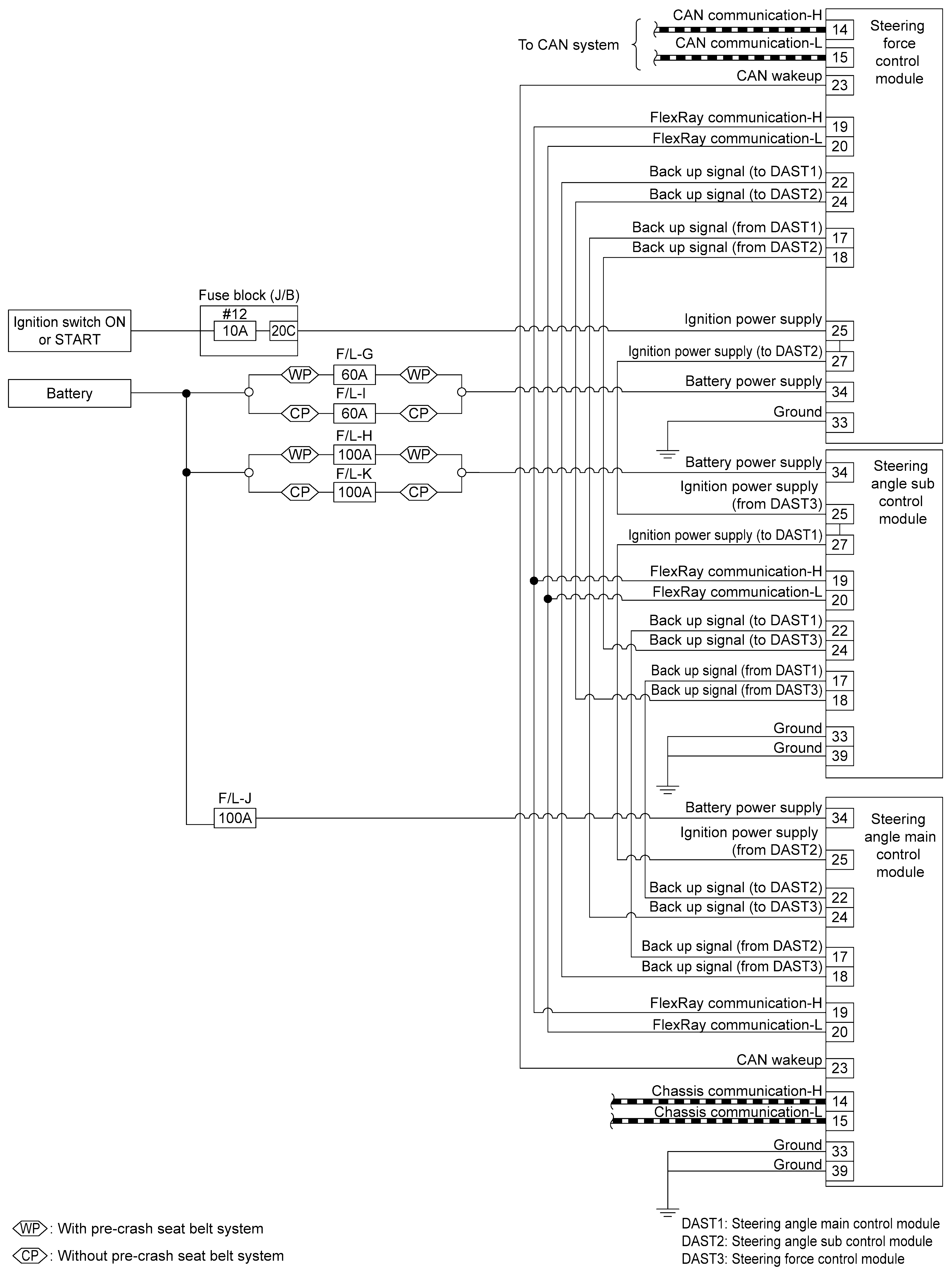

Circuit Diagram

GNSILL0221707-707

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSGIA1862GB-862

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSGIA2218GB-218

Courtesy of NISSAN NORTH AMERICA, INC.
