Removal and Installation: Removal

  1. Remove center console side finisher LH and center console side finisher RH. Refer to Exploded View .
  2. Remove cup holder assembly. Refer to Exploded View .

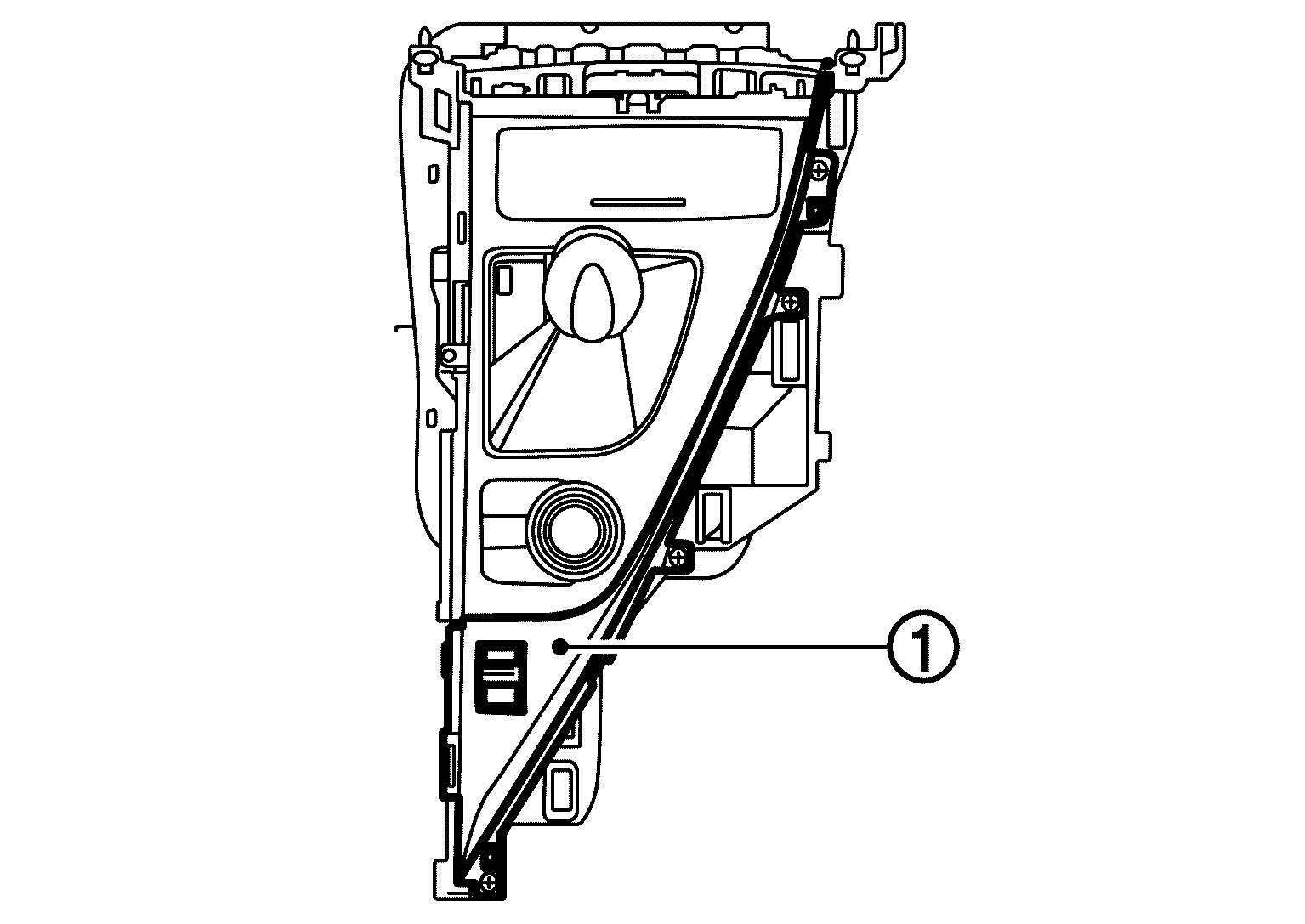

  3. Remove fixing screw, and then remove finisher SYMBOL .
    GNSJSOIA0819Z-819Courtesy of NISSAN NORTH AMERICA, INC.
  4. Disconnect harness connector from drive mode select switch.
  5. Remove drive mode select switch fixing screw, and then remove drive mode select switch.
