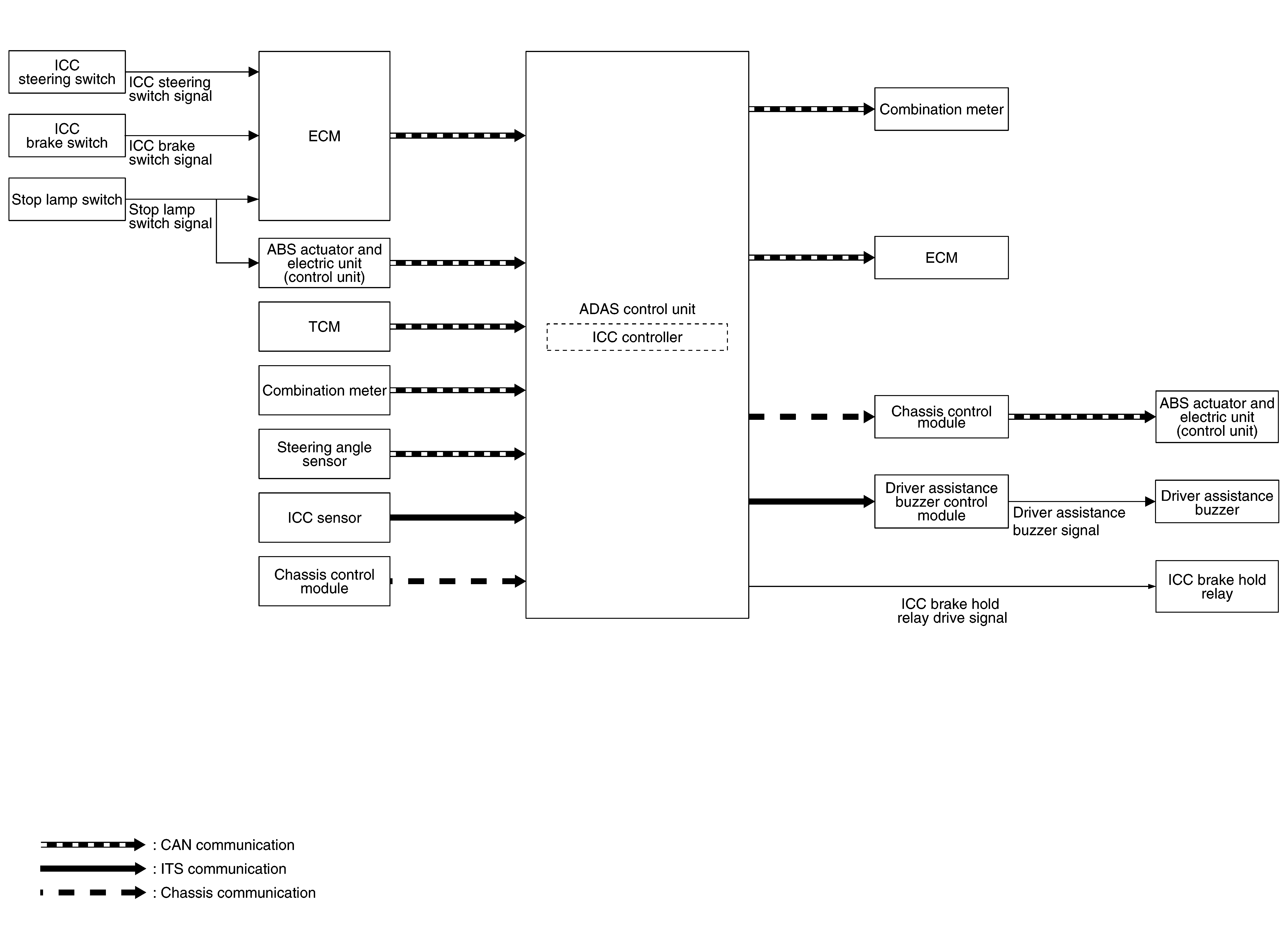

System Diagram

VR30DDTT

G09161828Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM
