Power Steering Control Module Connector End View (E221)

Connector Types:  FEA04FB-FHA2-LC

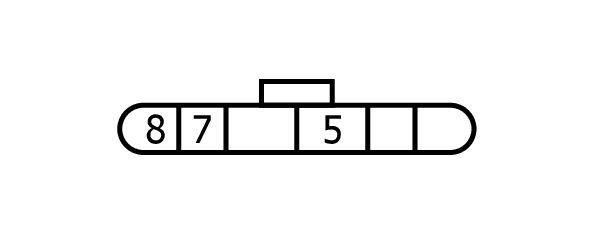

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

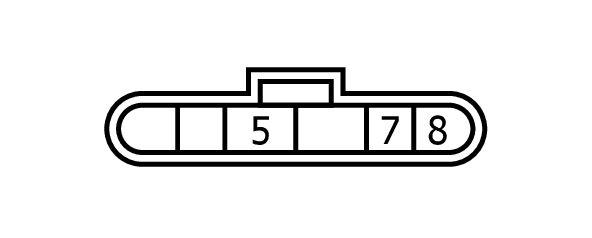

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
5	V	IGNITION POWER SUPPLY
7	P	CAN-L
8	L	CAN-H
