Exploded View: Disassembly

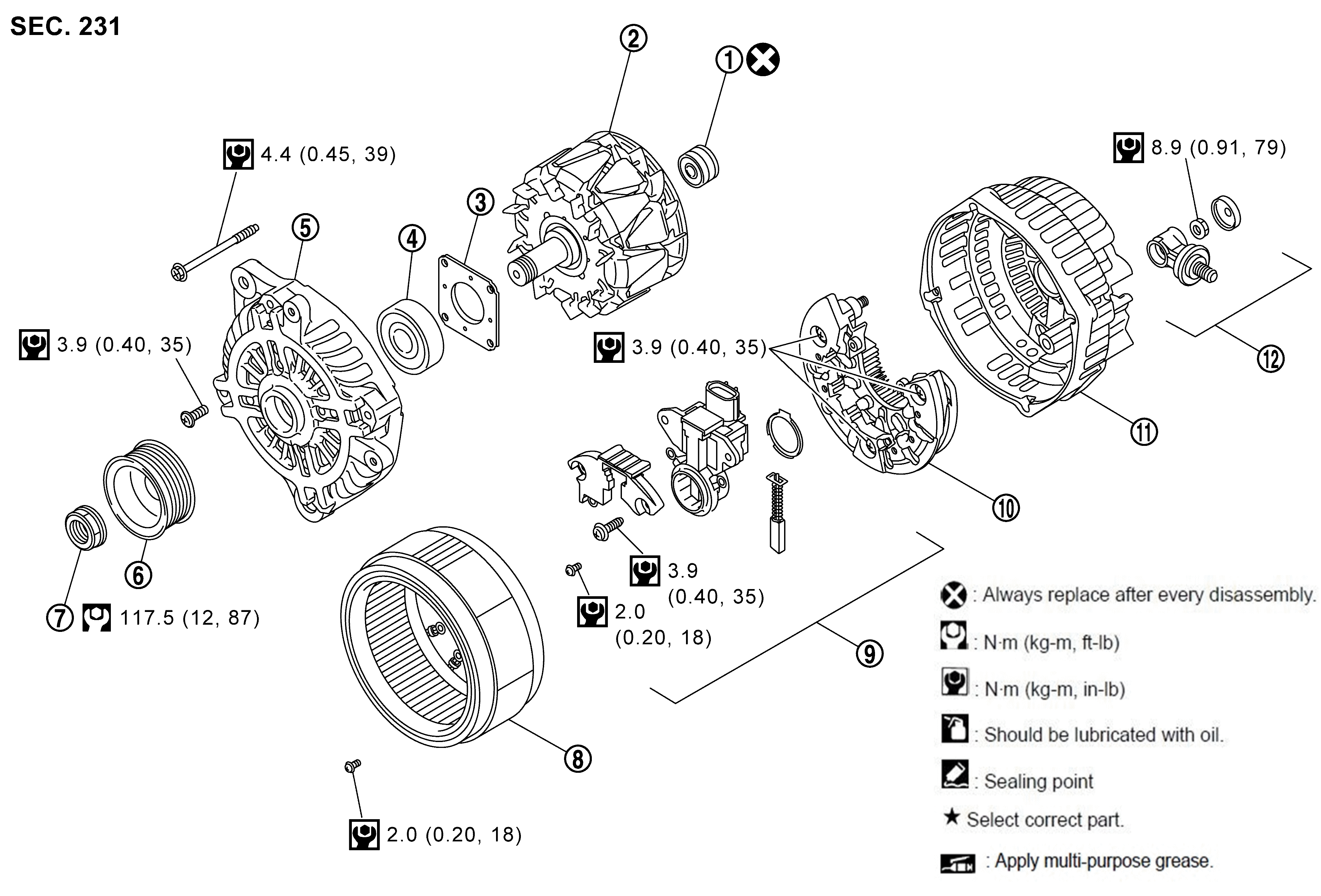

Fig 1: Alternator Internal Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

Rear bearing	Rotor assembly	Retainer
Front bearing	Front bracket assembly	Pulley
Pulley nut	Stator assembly	IC voltage regulator assembly
Diode assembly	Rear bracket assembly	Terminal set
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: N.m (kg-m, ft-lb)
