Exploded View

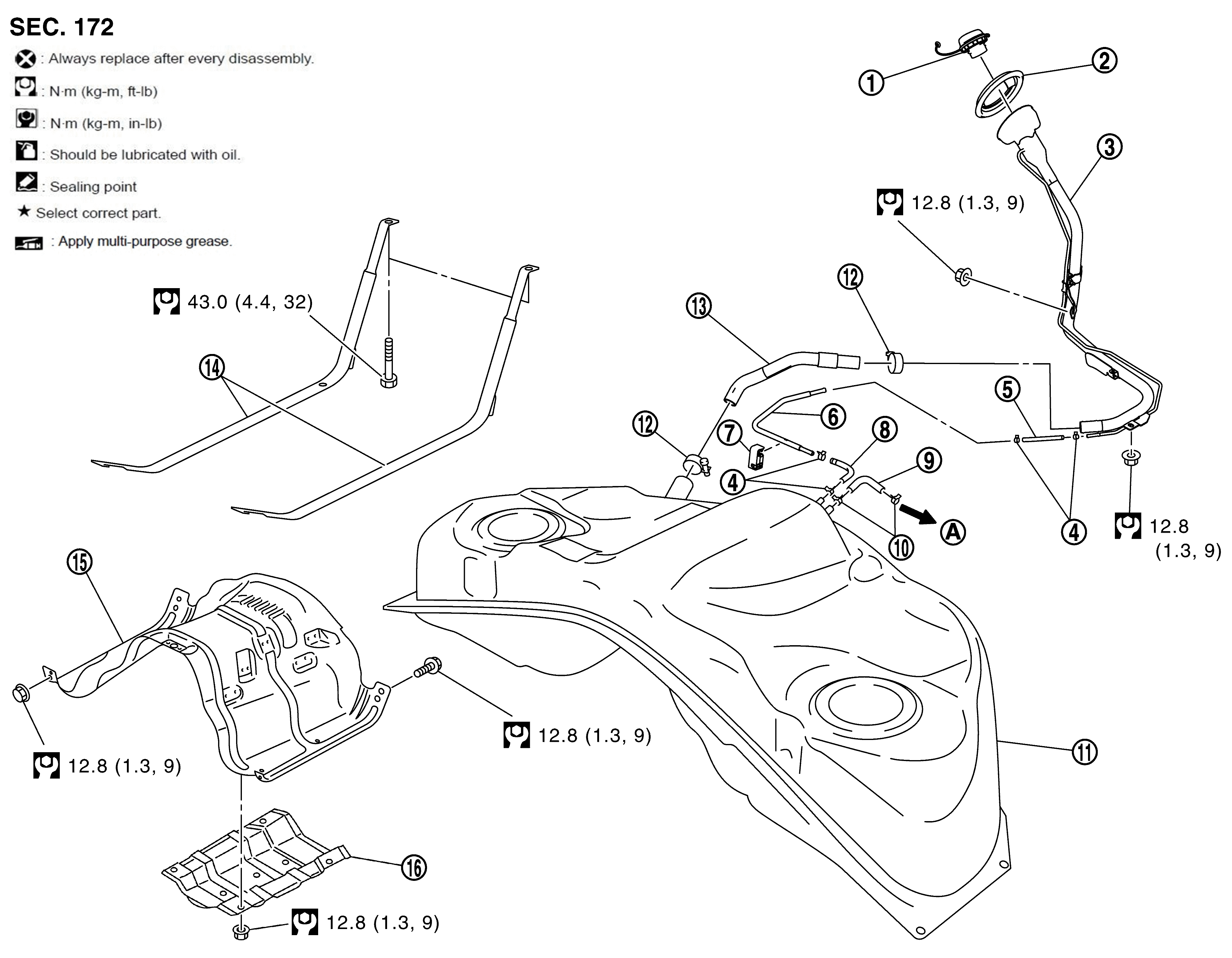

Fig 1: Exploded View Of Fuel Tank With Torque Specifications

GNSJPBIA6524GB-524

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel filler cap		Grommet		Fuel filler tube
	Clamp		EVAP hose		EVAP tube
	Clip		EVAP hose		Vent hose
	Clamp		Fuel tank		Clamp
	Fuel filler hose		Fuel tank mounting band		Fuel tank protector
	Insulator
	To EVAP canister
	: N.m (kg-m, ft-lb)

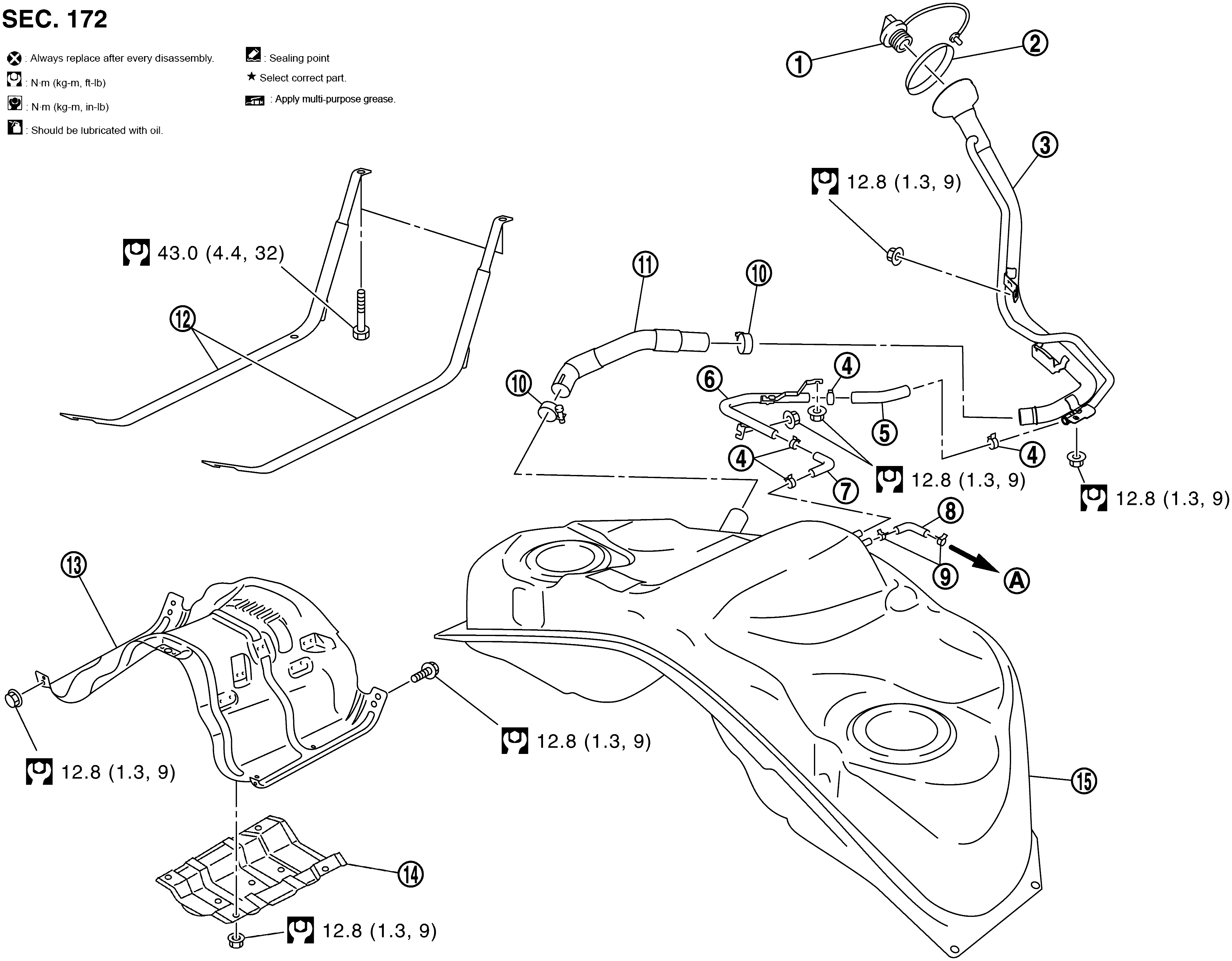

GNSJPBIA6649GB-649

Courtesy of NISSAN NORTH AMERICA, INC.

	Fuel filler cap		Grommet		Fuel filler tube
	Clamp		Vent hose		Vent tube
	Vent hose		EVAP hose		Clamp
	Clamp		Fuel filler hose		Fuel tank mounting band
	Fuel tank protector		Insulator		Fuel tank
	To EVAP canister
	: N.m (kg-m, ft-lb)
