Removal and Installation: Removal

Remove front bumper. Refer to Removal and Installation
Disconnect steering angle sub control module connectors.

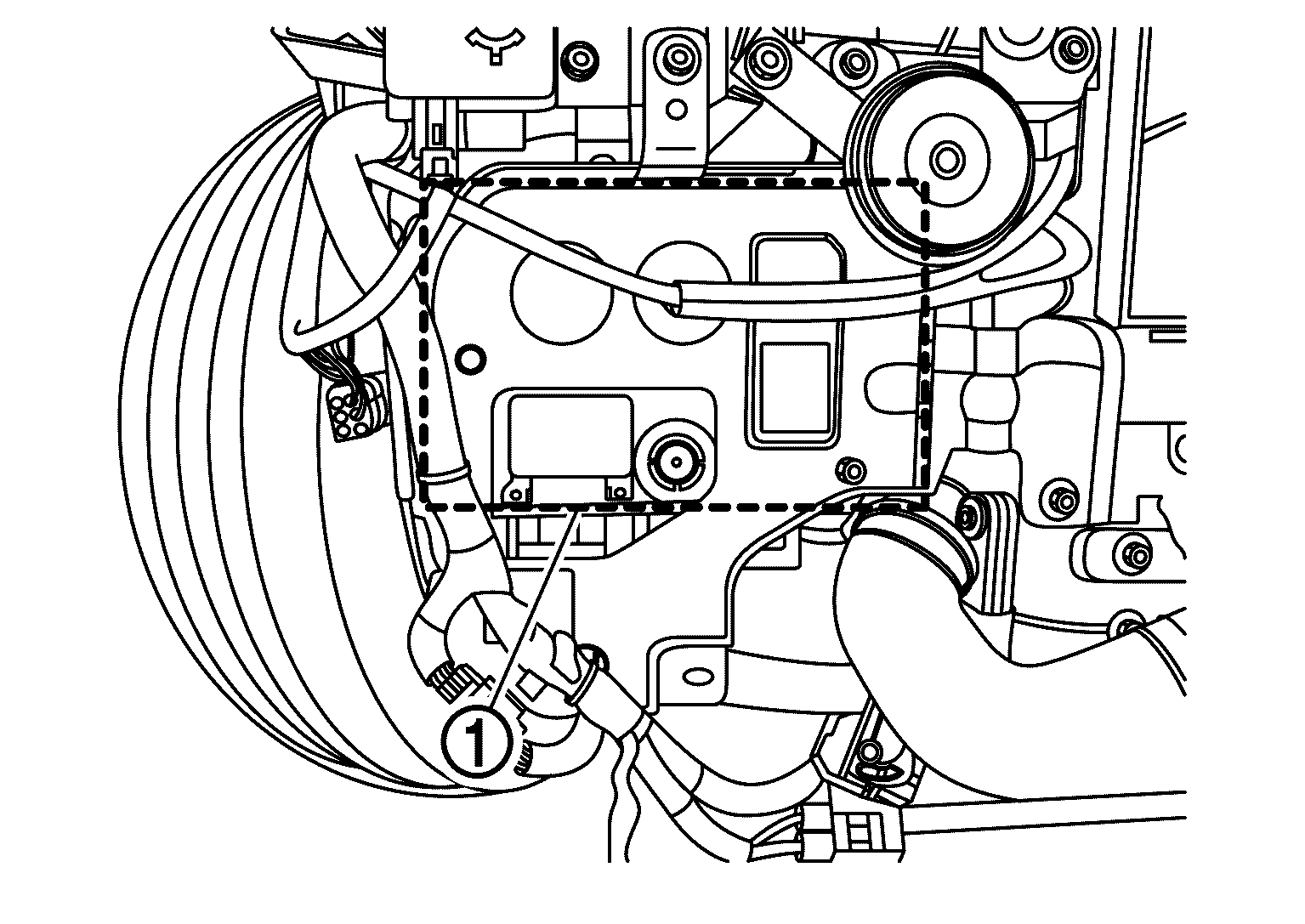

Remove the bolts of steering angle sub control module .

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the steering angle sub control module.
CAUTION:
When replacing control module, replace the following control modules as a set.
- Steering force control module
- Steering angle main control module
- Steering angle sub control module
