Exploded View

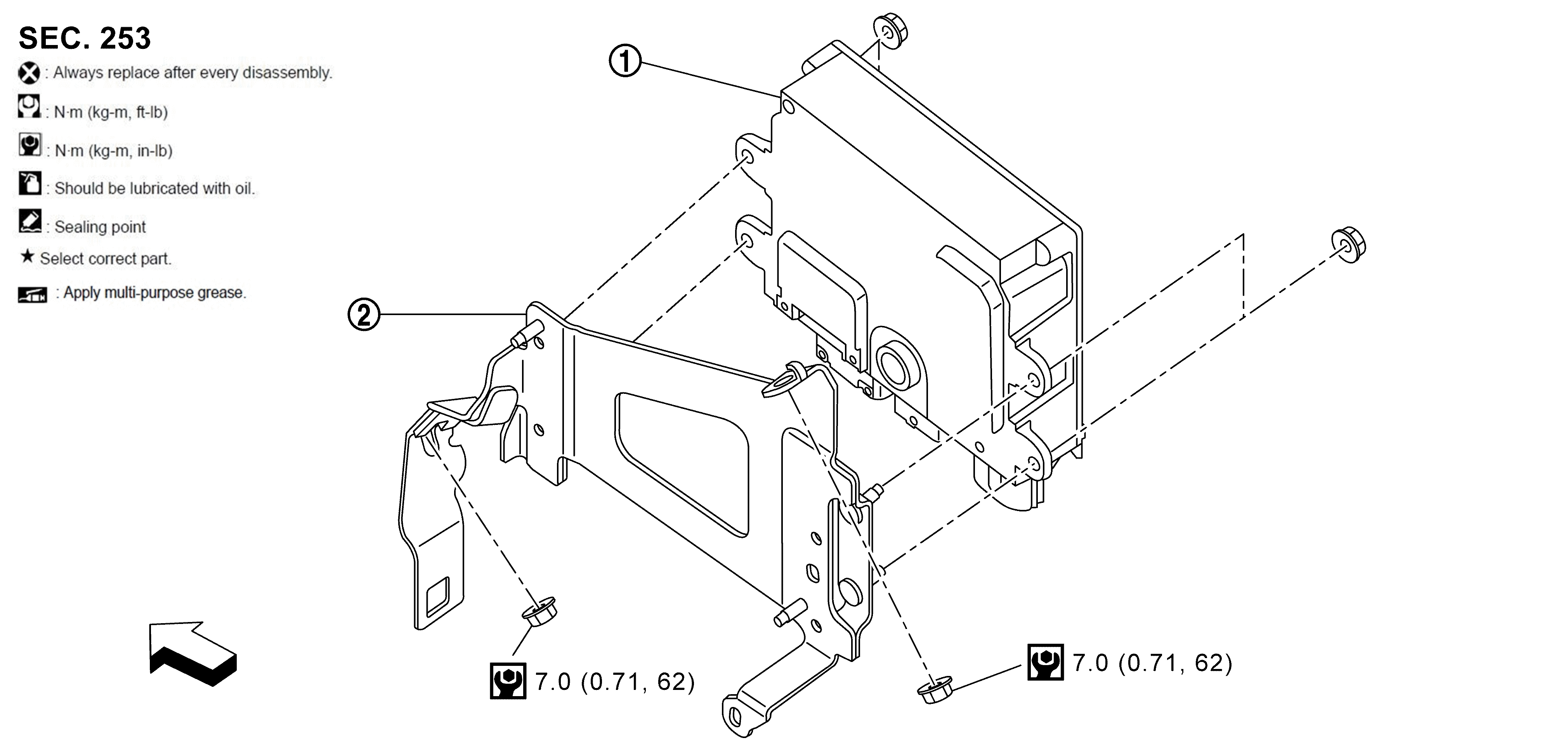

Fig 1: Steering Force Control Module With Torque Specifications
GNSJSGIA2290GB-290Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Steering force control module

SYMBOL

Bracket

SYMBOL : Vehicle front
