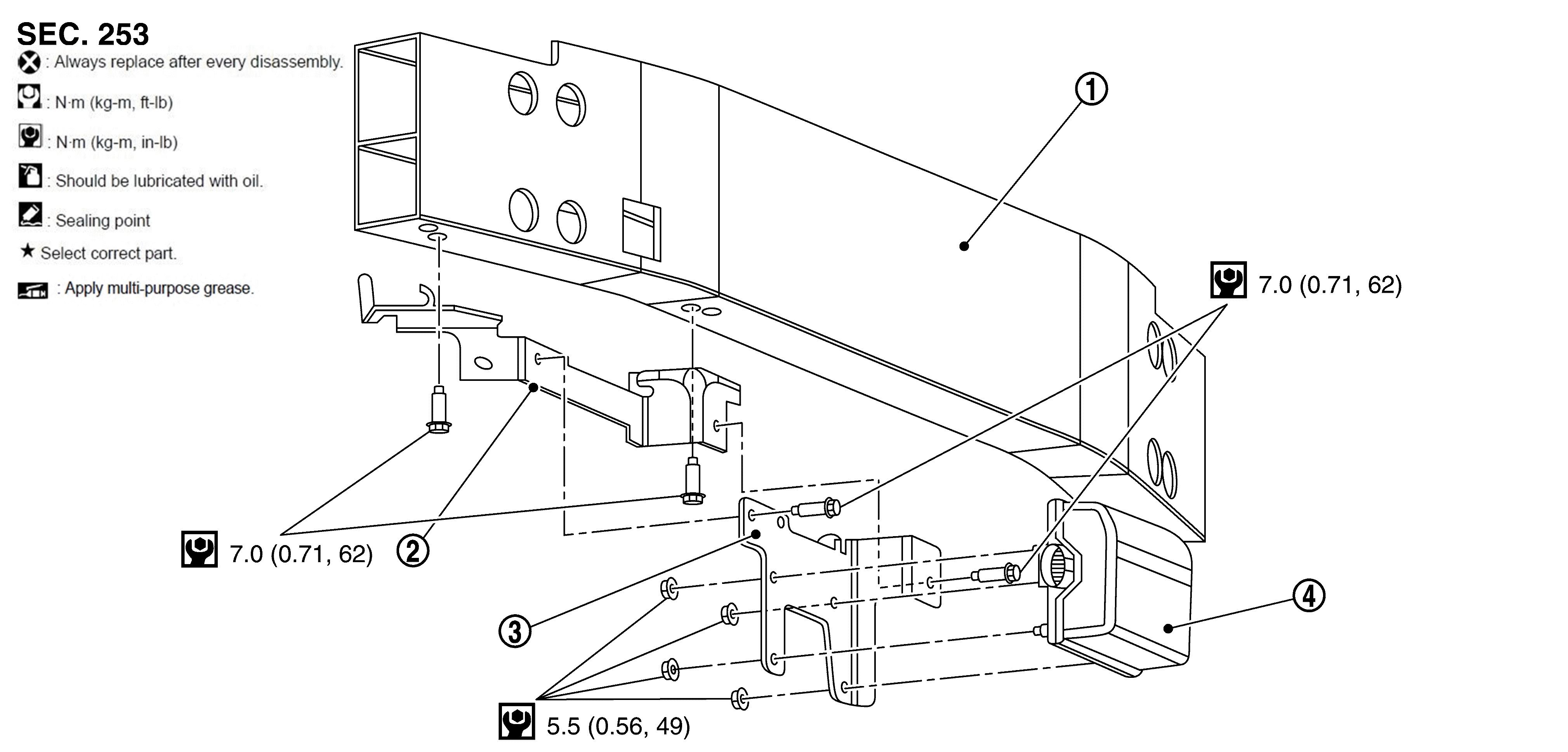

Exploded View
CAUTION:
Always perform the laser beam aiming adjustment and check the operation after the replacement, removal and installation of ICC sensor.
Courtesy of NISSAN NORTH AMERICA, INC.
|
|
Front bumper reinforcement
|
|
Bracket B
|
|
Bracket A
|
|
|
ICC sensor
|
|
|
: N.m (kg-m, in-lb)
|
