Exploded View

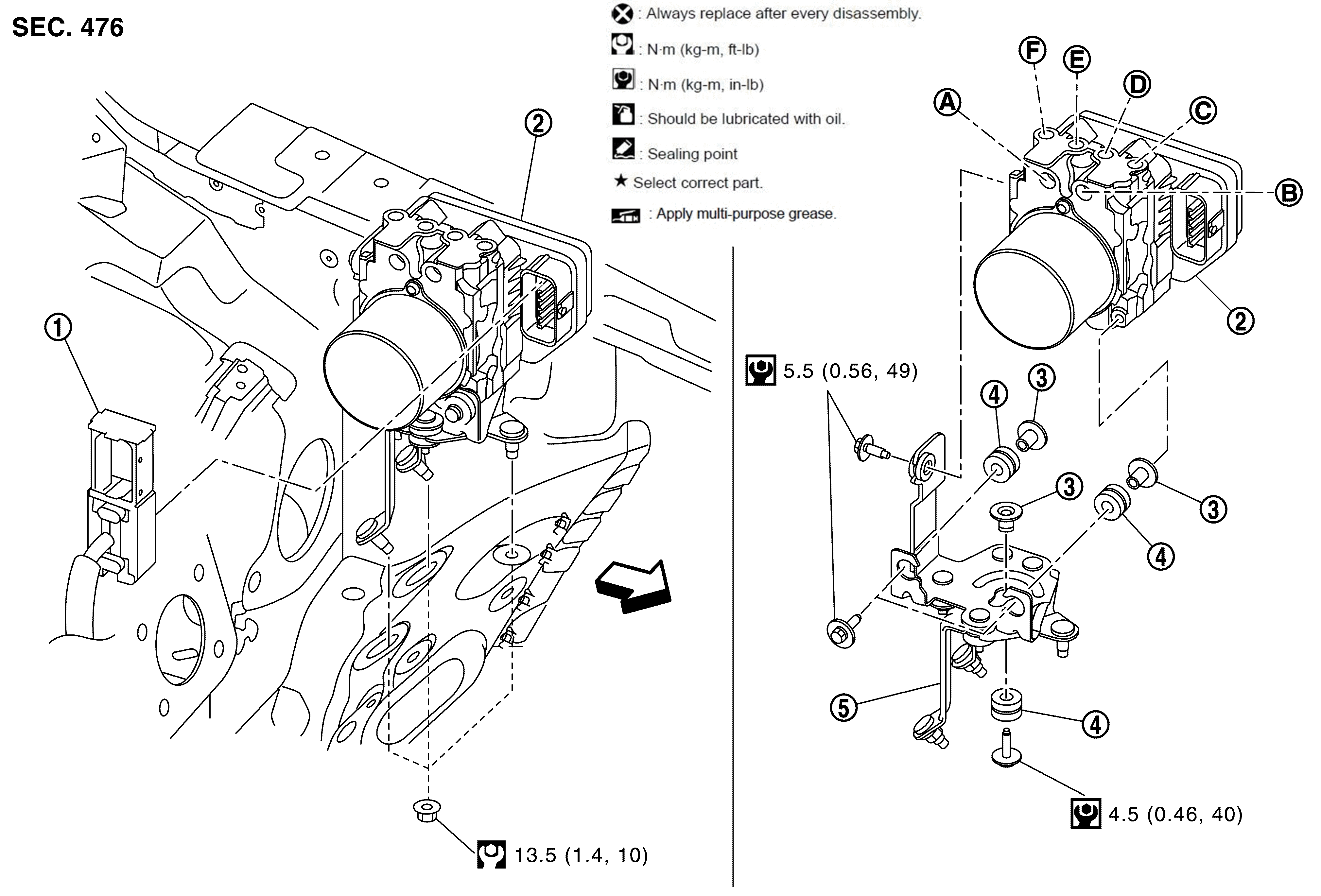

Fig 1: ABS Actuator And Electric Unit (Control Unit) With Torque Specifications
GNSJSFIA2018GB-018SYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLSYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

ABS actuator and electric unit (control unit) harness connector

SYMBOL

ABS actuator and electric unit (control unit)

SYMBOL

Collar

SYMBOL

Bushing

SYMBOL

Bracket

SYMBOL

To master cylinder secondary side

SYMBOL

To master cylinder primary side

SYMBOL

To front LH caliper

SYMBOL

To rear RH caliper

SYMBOL

To rear LH caliper

SYMBOL

To front RH caliper

SYMBOL : Vehicle front

SYMBOL : N.m (kg-m, ft-lb)

SYMBOL : N.m (kg-m, in-lb)
