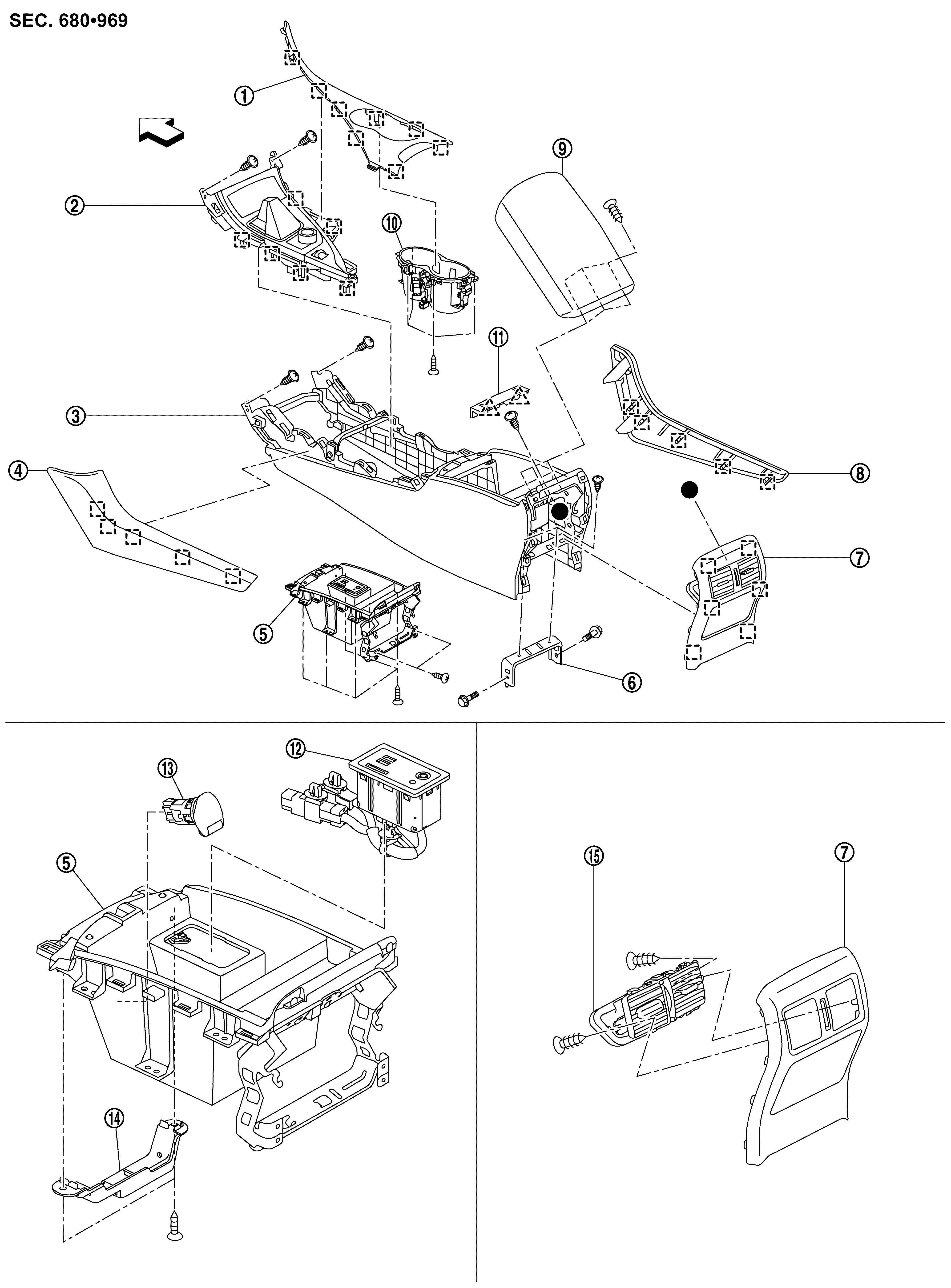

Exploded View

Courtesy of NISSAN NORTH AMERICA, INC.

	Console upper finisher	Console finisher assembly	Center console assembly
	Center console side finisher LH	Console box assembly	Console rear bracket
	Console rear finisher assembly	Center console side finisher RH	Console lid assembly
	Cup holder assembly	Console mask	External data input box
	Power socket assembly	Console bracket	Rear ventilator grille
	: Pawl
	: Metal clip
	: Vehicle front
: Indicates that the part is connected at points with same symbol in actual vehicle.

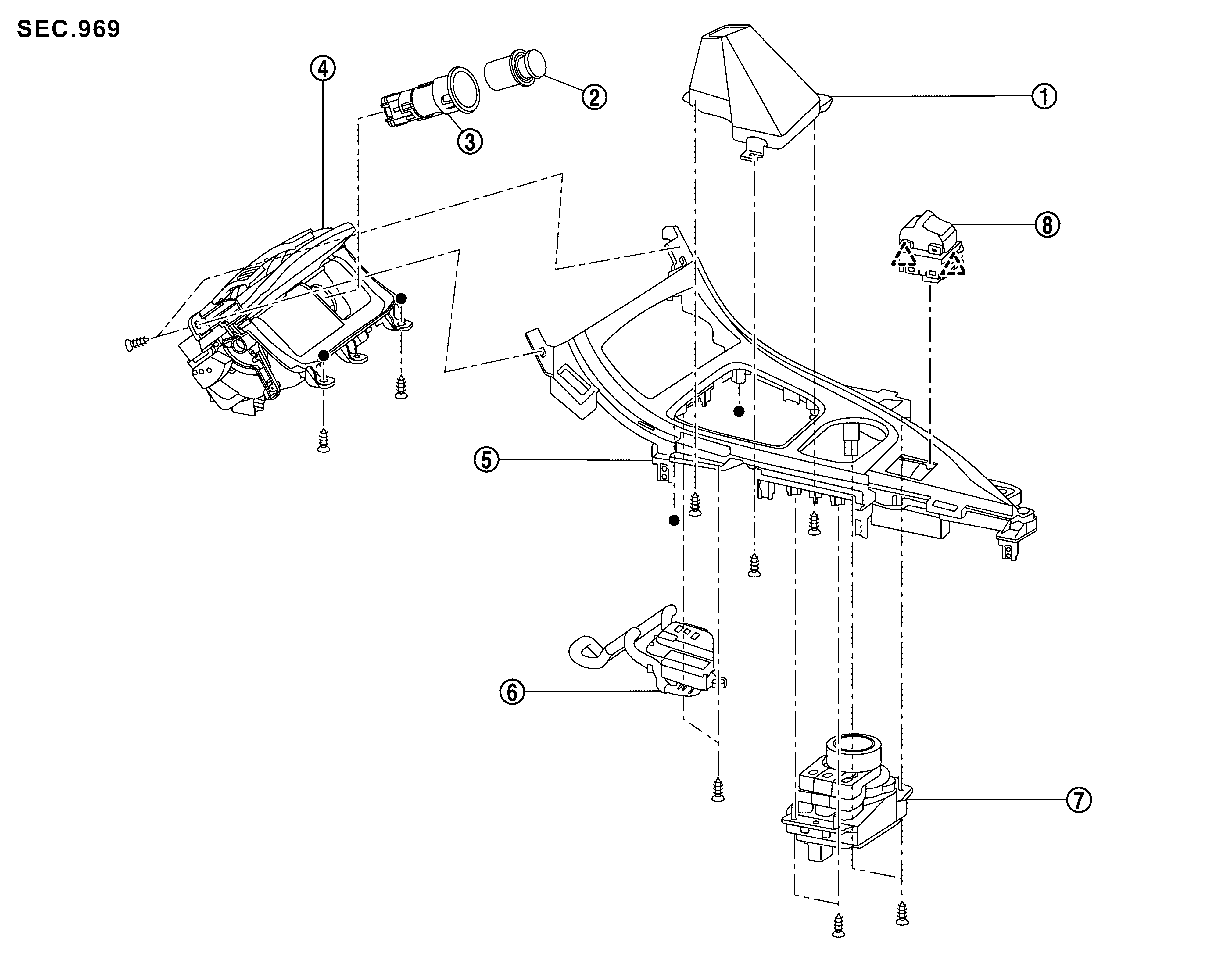

Courtesy of NISSAN NORTH AMERICA, INC.

	Console finisher boot	Cap	Power socket assembly
	Console front pocket assembly	Console finisher assembly	Selector lever position indicator
	Multifunction switch	Drive mode select switch
	: Pawl
: Indicates that the part is connected at points with same symbol in actual vehicle.
