Component Location

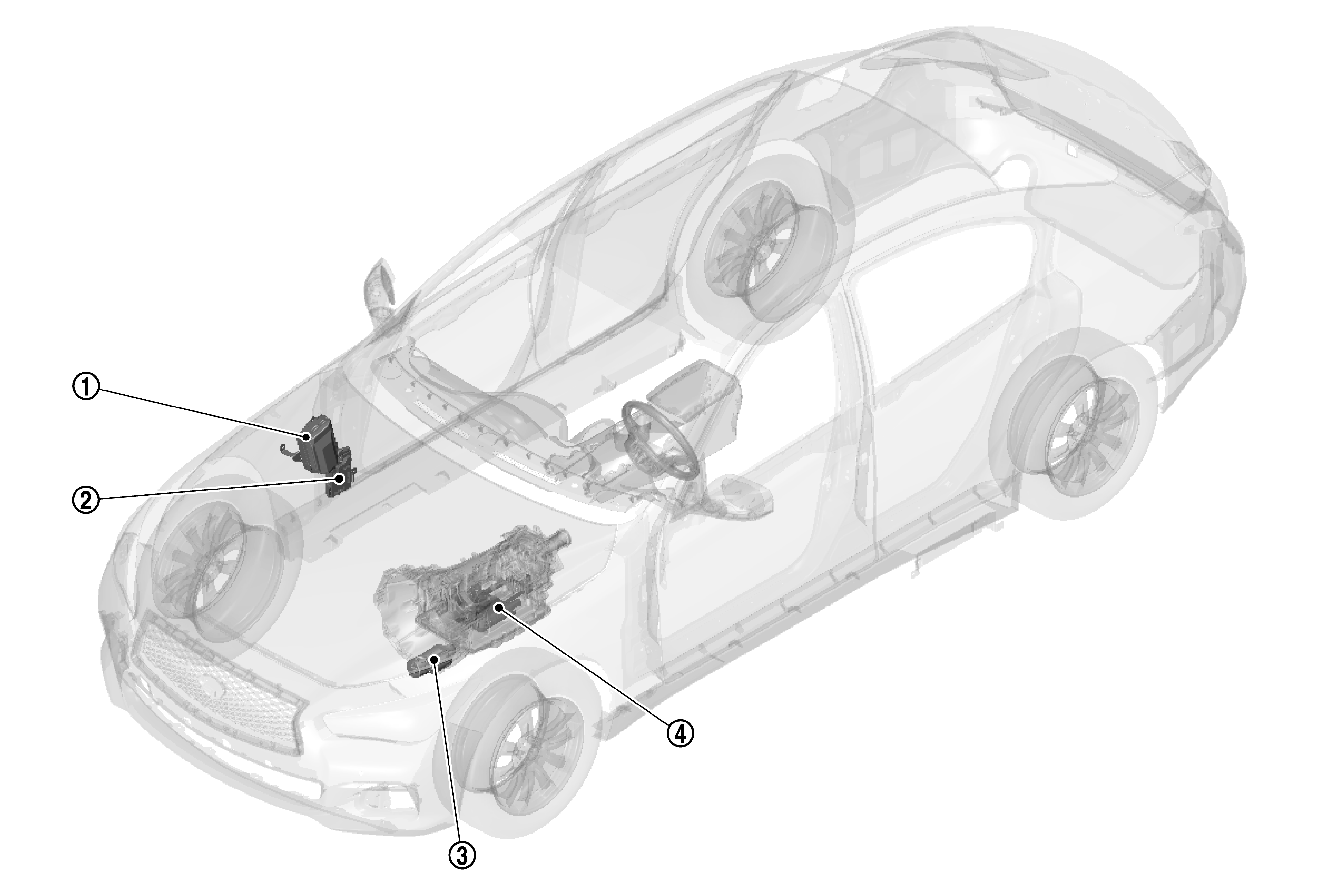

GNSJMBIA4738Z-738Courtesy of NISSAN NORTH AMERICA, INC.

No.

Component

Function

SYMBOL

IPDM E/R

CPU inside IPDM E/R controls starter control relay.

Refer to Component Location for detailed installation location.

SYMBOL

BCM

BCM controls starter relay.

Refer to Component Location for detailed installation location.

SYMBOL

Starter motor

Refer to Starter motor .

SYMBOL

TCM

TCM supplies power to starter relay and starter control relay when the selector lever is shifted to the P or N position.

Refer to Component Location for detailed installation location.
