Circuit Diagram

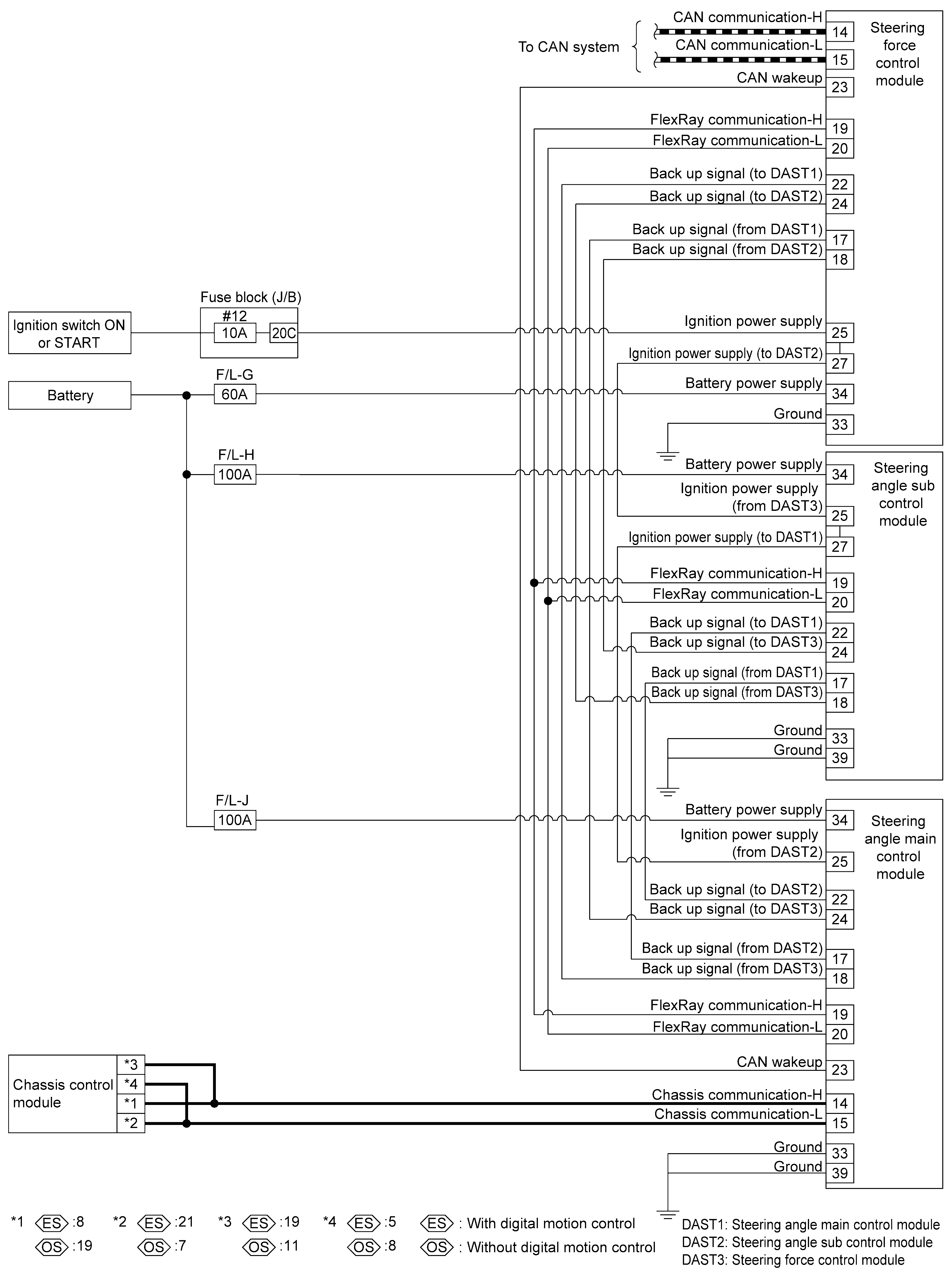

GNSJSGIA2294GB-294

Courtesy of NISSAN NORTH AMERICA, INC.

GNSJSGIA1862GB-862

Courtesy of NISSAN NORTH AMERICA, INC.

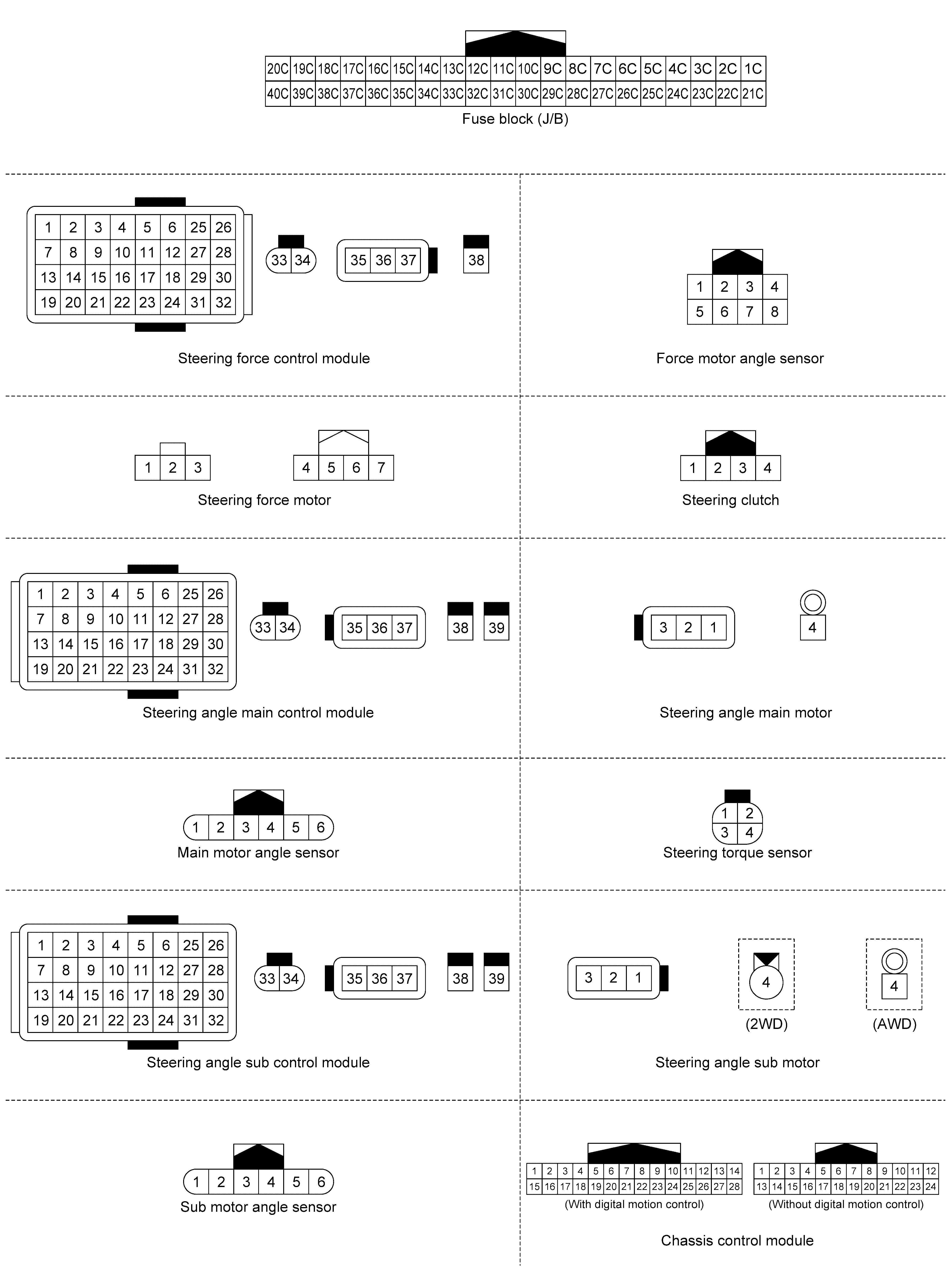

GNSJSGIA2295GB-295

Courtesy of NISSAN NORTH AMERICA, INC.
