Exploded View

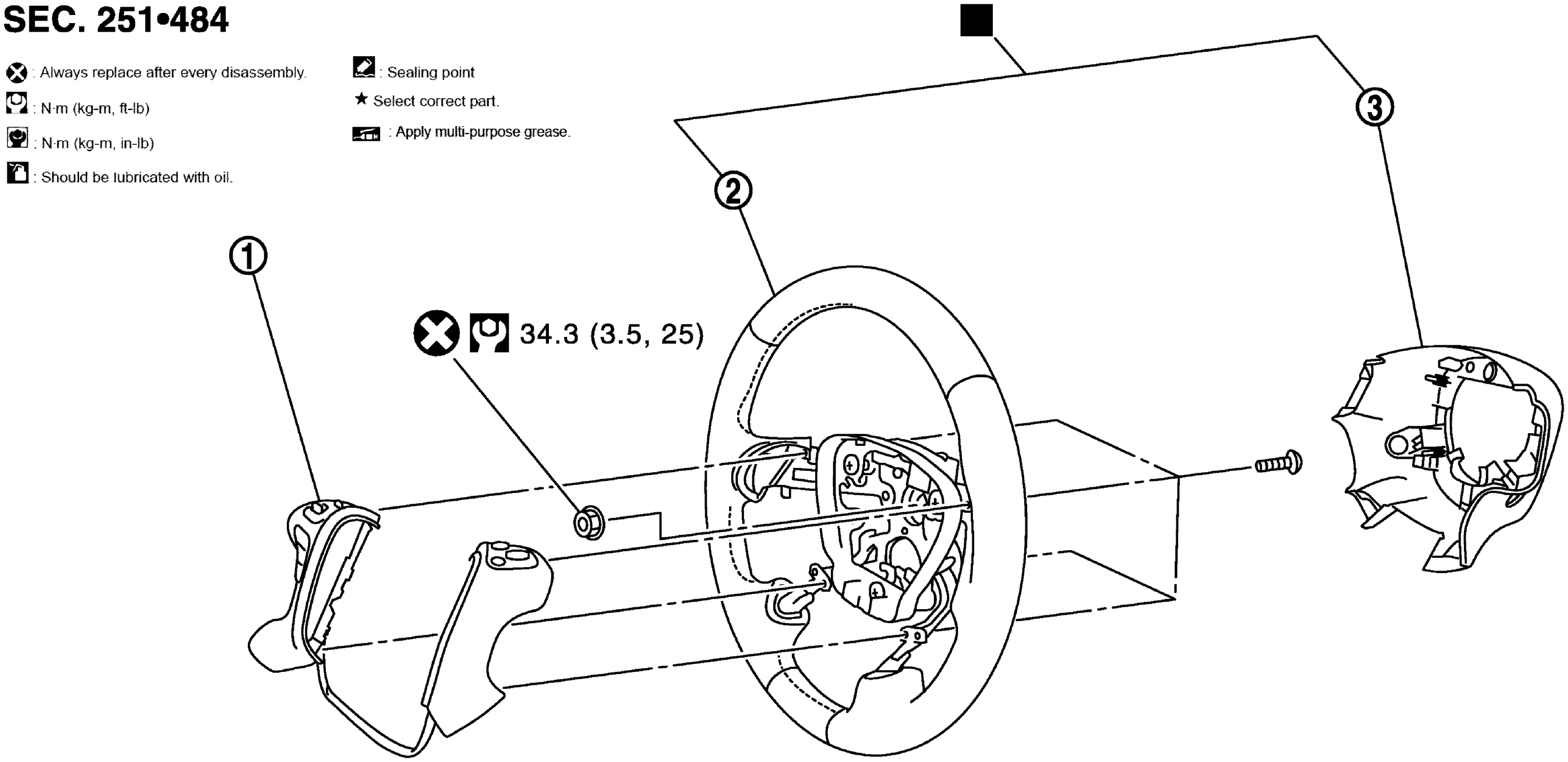

Fig 1: Steering Wheel With Torque Specifications
GNSJSGIA0814GB-814Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering switch

2.

Steering wheel

3.

Steering wheel rear cover

SYMBOL : Replace the parts as a set.

SYMBOL

: Always replace after every disassembly.

SYMBOL

:N.m (kg-m, ft-lb)
