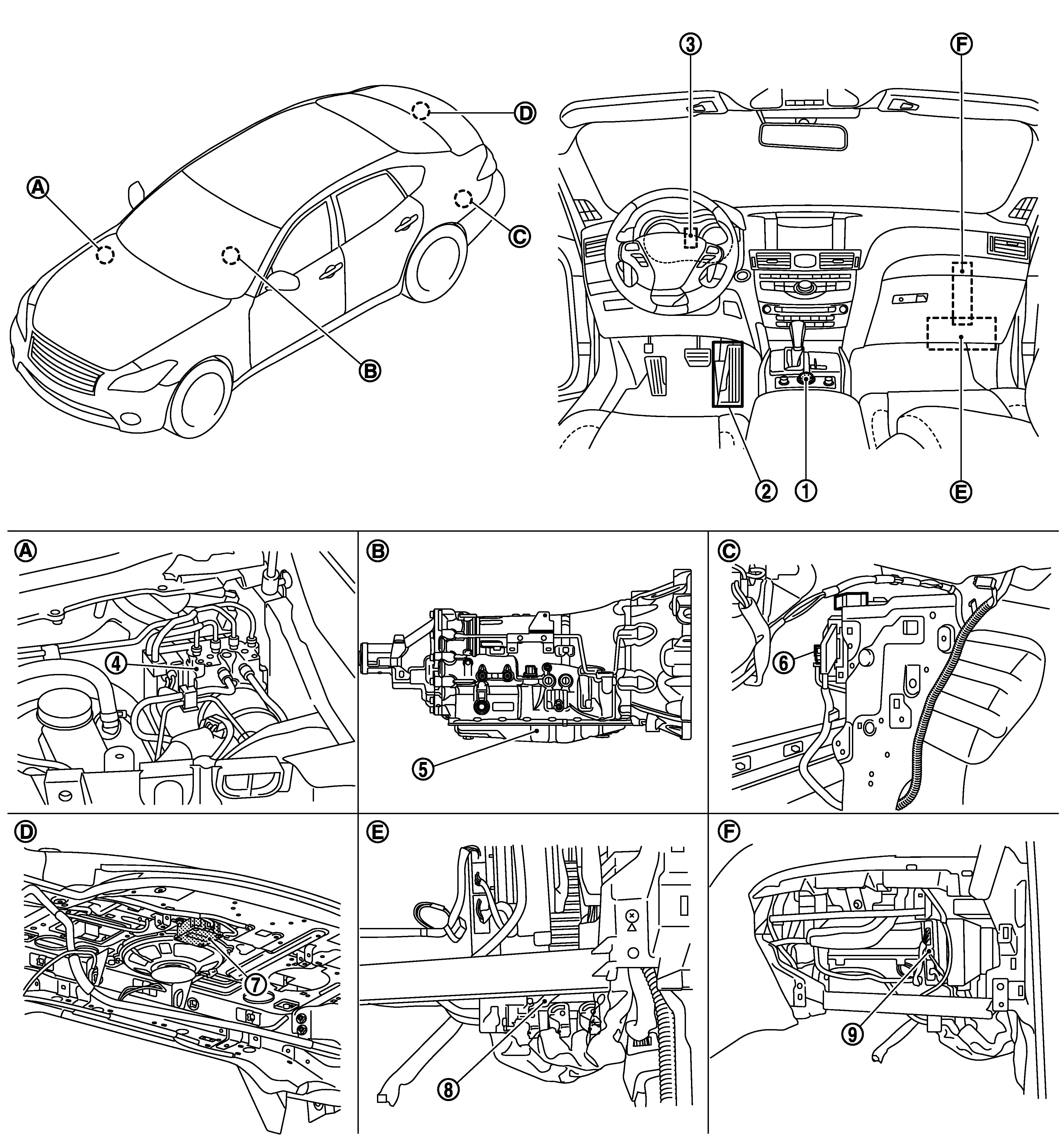

Component Parts Location
|
1. |
Drive mode select switch |
2. |
Accelerator pedal actuator |
3. |
Combination meter |
|
4. |
ABS actuator and electric unit |
5. |
TCM |
6. |
4WAS main control unit |
|
7. |
ADAS control unit |
8. |
ECM |
9. |
A/C auto amp. |
|
A. |
Inside of brake master cylinder cover |
B. |
Transmission assembly |
C. |
Back of rear wheel house finisher (left) |
|
D. |
Trunk side rear parcel shelf |
E. |
Lower left of glove box |
F. |
A view with instrument lower panel (left) removed |
