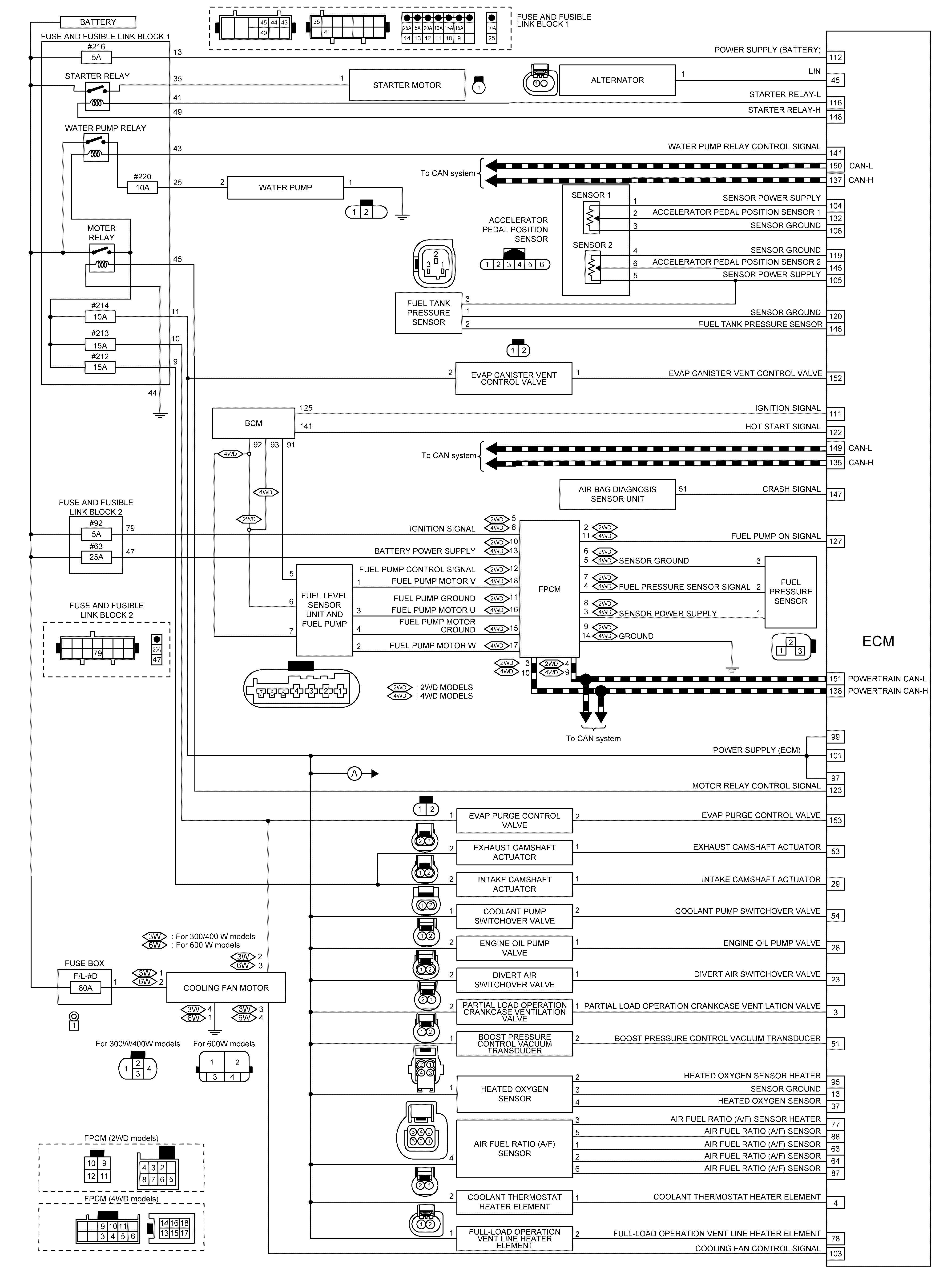

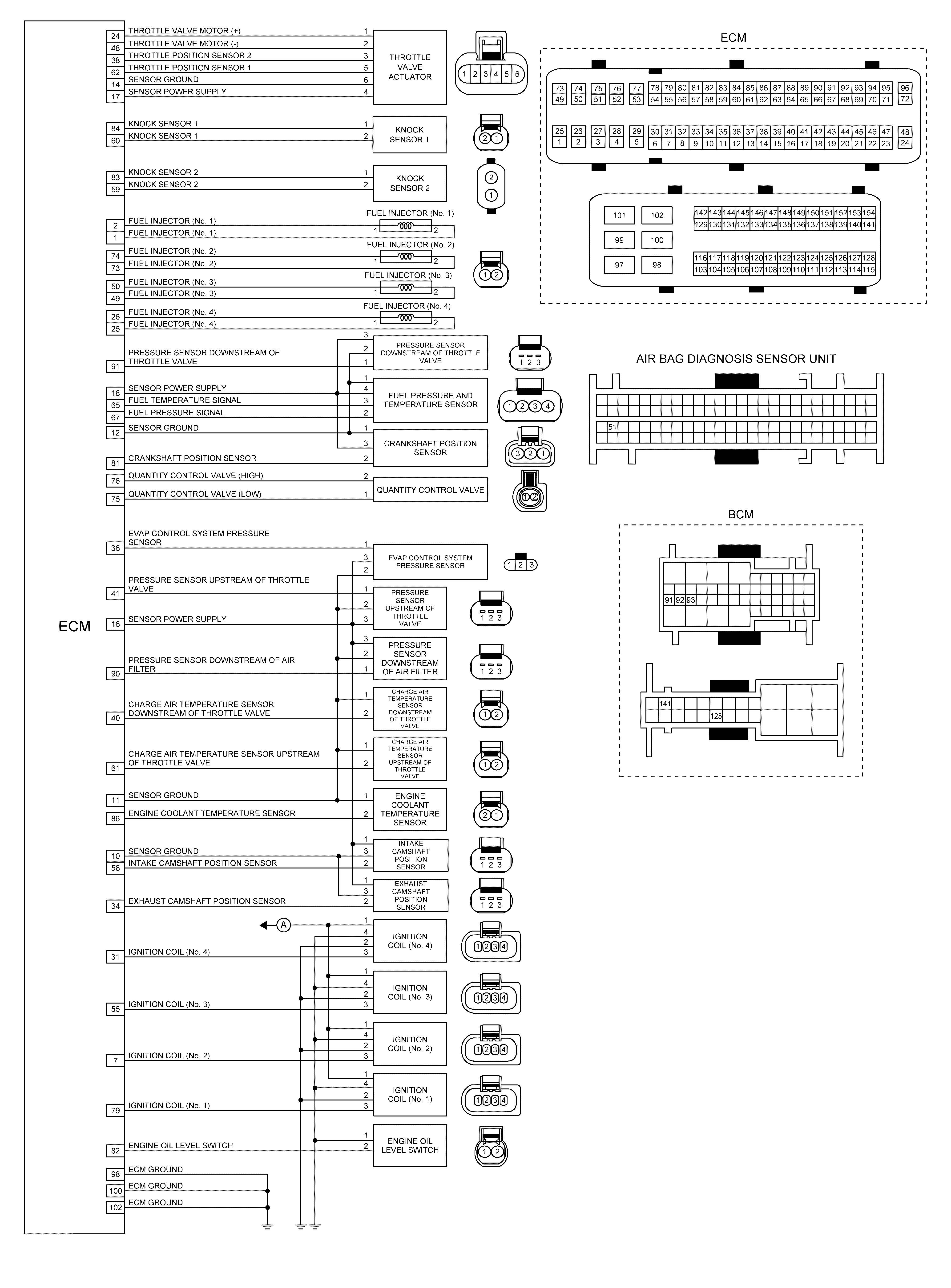

Circuit Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
*: Cooling fun motor of 600 W models is not applicable.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
Courtesy of NISSAN NORTH AMERICA, INC.
