BCM (Body Control Module) Connector End View (E14)

Connector Types:  MB_A0235458926

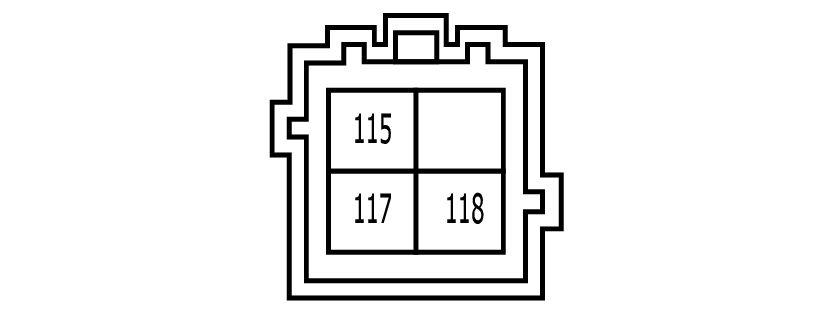

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

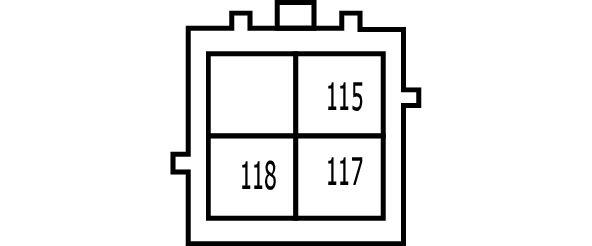

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
115	R	BAT (VIA DECOUPLING RELAY)
117	R	BAT (VIA DECOUPLING RELAY)
118	BR	GND
