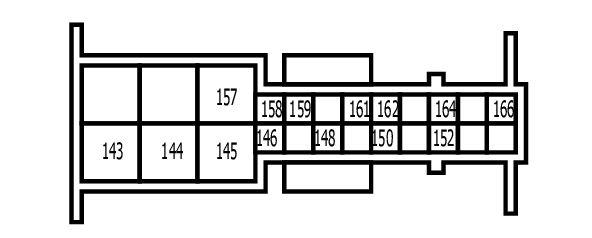

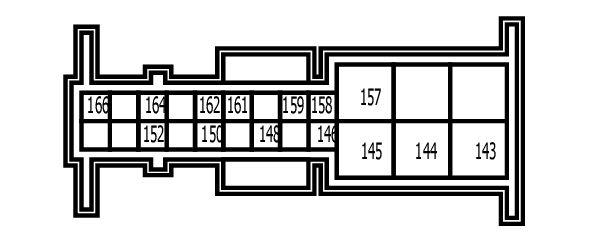

BCM (Body Control Module) Connector End View (E16)
Connector Types: MB_A1665400181
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 143 | Y | FRONT FOG LAMP RH |
| 144 | W | HIGH BEAM RH |
| 145 | GR | LOW BEAM LH |
| 146 | P | FRONT TURN SIGNAL RH |
| 148 | V | FR BRAKE WEAR SENSOR RH |
| 150 | GR | PARKING LAMP RH |
| 152 | L | LIN (BAT SENSOR) |
| 157 | O | SSK STAT |
| 158 | R | COOLANT LEVEL SW SIG |
| 159 | BR | COOLANT LEVEL SW GND |
| 161 | P | AMBIENT SENSOR GND |
| 162 | G | AMBIENT SENSOR SIG |
| 164 | O | BRAKE FLUID LEVEL SW GND |
| 166 | R | DECOUPLING RELAY CONT |
