BCM (Body Control Module) Connector End View (M25)

Connector Types:  MB_A0075405081

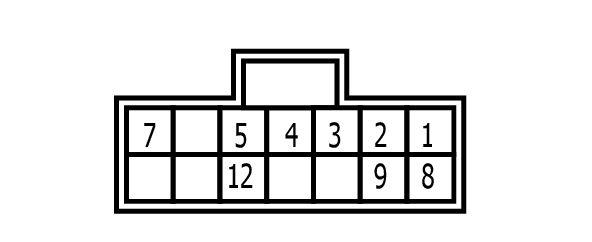

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

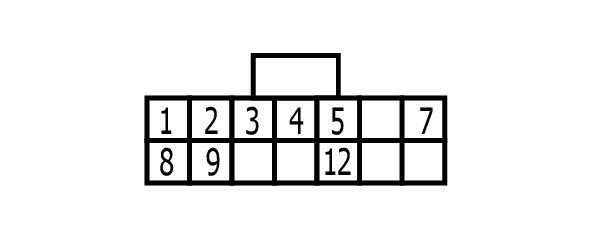

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	W	ROTARY LIGHT SW GND
2	O	ROTARY LIGHT SW (PL/PR/TAL)
3	R	ROTARY LIGHT SW (AUTO/LOW)
4	G	ROTARY LIGHT SW (FR FOG)
5	Y	LWR_(Eingang)
7	GR	SWITCH INDICATOR
8	R	CAN-H (BODY 2)
9	BR	CAN-L (BODY 2)
12	O	LIN (IBS)
