BCM (Body Control Module) Connector End View (M26)

Connector Types:  MB_A0235459826

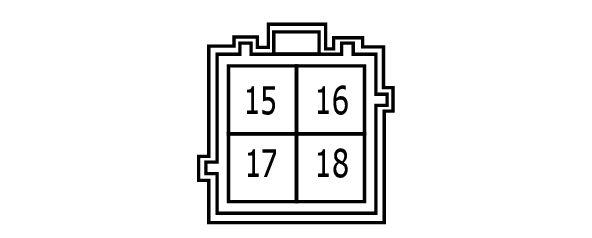

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

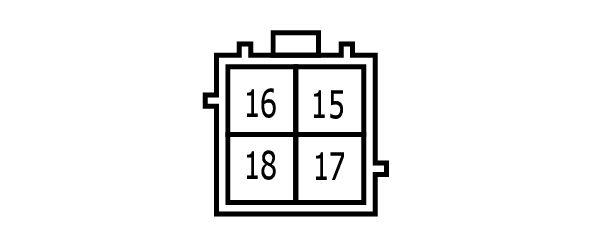

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
15	W	BAT (FUSE)
16	BR	BAT (FUSE)
17	R	BAT (FUSE)
18	B	GND
