Display Control Unit Connector End View (M501)

Connector Types:  TYCO-2174512-1

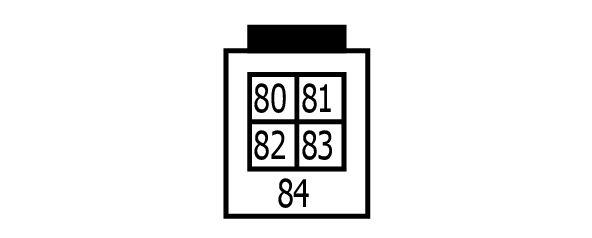

Fig 1: Terminal-side
GNSW56651Courtesy of NISSAN NORTH AMERICA

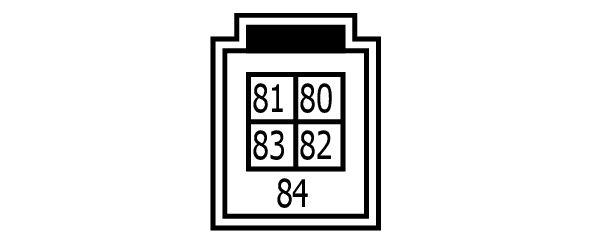

Fig 2: Harness-side
GNSW57216Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
80 G USB GROUND
81 W USB V BUS SIGNAL
82 R USB D-SIGNAL
83 L USB D+SIGNAL
84 SHIELD SHIELD
