Display Control Unit Connector End View (M502)

Connector Types:  TYCO-2174512-3

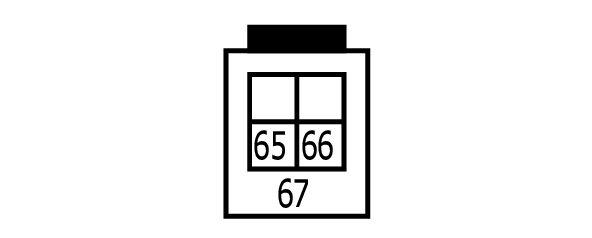

Fig 1: Terminal-side
GNSW57221Courtesy of NISSAN NORTH AMERICA

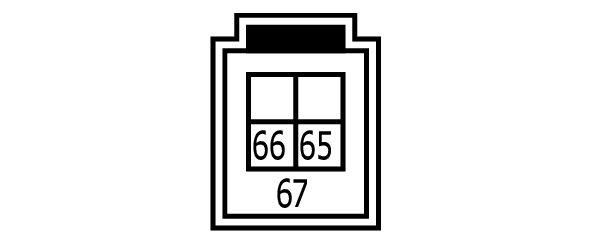

Fig 2: Harness-side
GNSW56693Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
65 W LVDS (+)
66 B LVDS (-)
67 SHIELD SHIELD
