Display Control Unit Connector End View (M505)

Connector Types:  TYCO-2174512-5

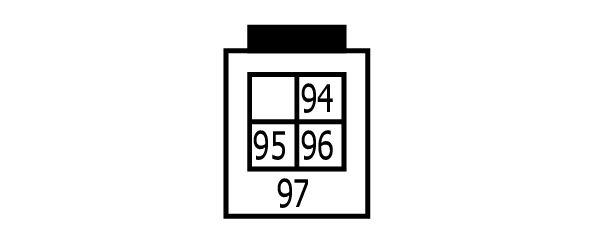

Fig 1: Terminal-side
GNSW56906Courtesy of NISSAN NORTH AMERICA

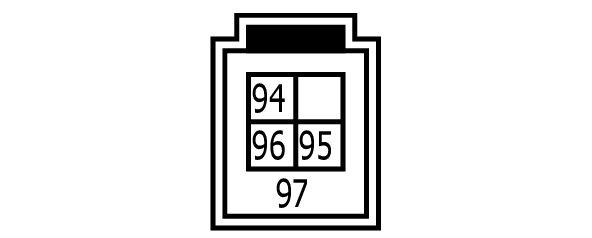

Fig 2: Harness-side
GNSW56383Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
94 W USB V BUS SIGNAL
95 R USB D-SIGNAL
96 L USB D+SIGNAL
97 SHIELD SHIELD
