External Data Input Box (SD Card) Connector End View (M237)

Connector Types:  TH04FW-NH

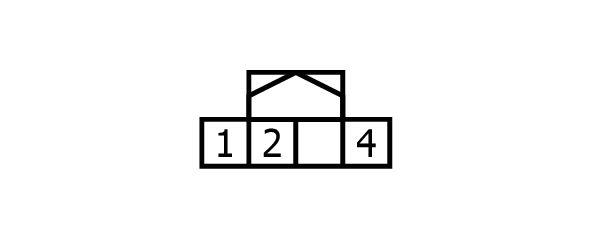

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

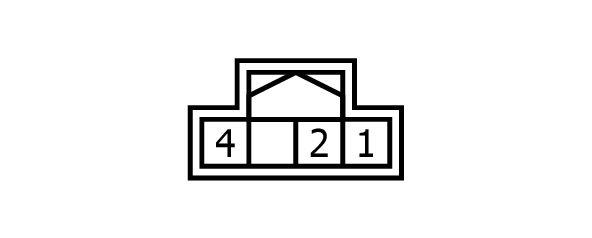

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R	BATTERY VOLTAGE
2	V	ACCESSORY VOLTAGE
4	L	GROUND
