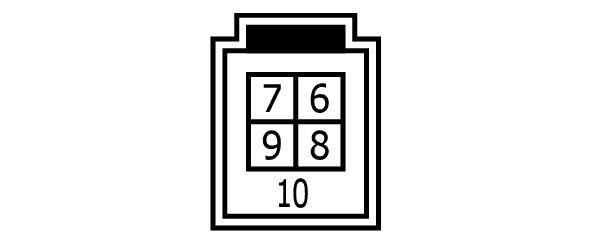

External Data Input Box (SD Card) Connector End View (M399)
Connector Types:
TYCO-1-1554979-7
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 6 |
G |
USB_GND |
| 7 |
W |
V_BUS |
| 8 |
R |
USB_D- |
| 9 |
L |
USB_D+ |
| 10 |
SHIELD |
SHIELD |
