Upper Control Panel Control Unit Connector End View (M173)

Connector Types:  MB_A0385451228

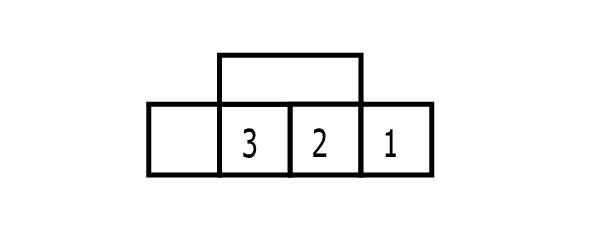

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

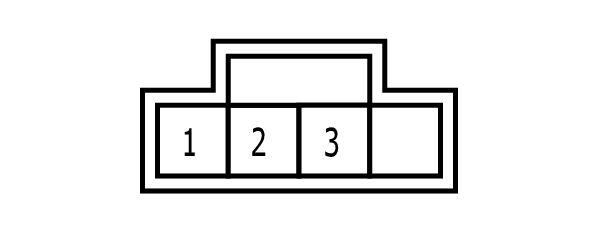

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	GR	PWR SPLY
2	BR	GND
3	O	LIN
