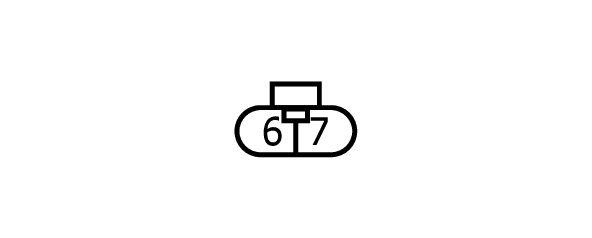

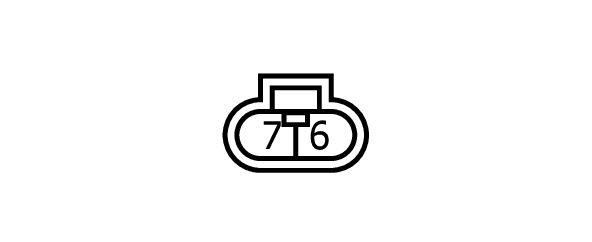

Fuse Box Connector End View (E77)
Connector Types:
MB_A0225452026
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 6 |
BR |
- |
| 7 |
R |
- |
