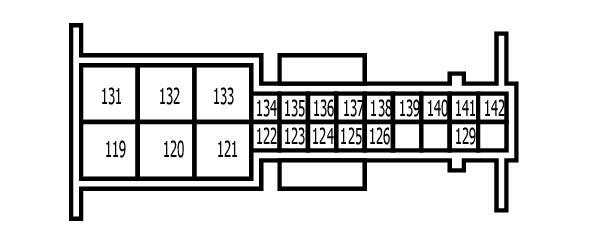

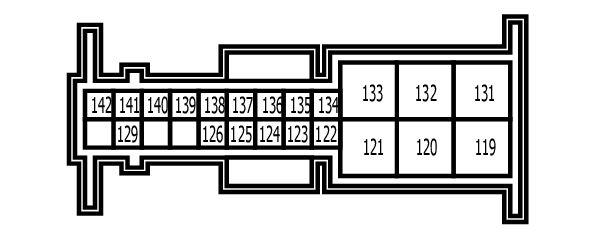

BCM (Body Control Module) Connector End View (E15)
Connector Types: MB_A1665400081
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 119 | V | RR WASHER CONT |
| 120 | GR | FR WASHER CONT |
| 121 | W | BRAKE PEDAL |
| 122 | Y | SPARY NOZZLE HOSE HEATER POWER SUPPLY |
| 123 | G | INJECTION RELAY CONT |
| 124 | BR/R | HOOD SWITCH STATUS 1 |
| 125 | B | KI.15 MOTORST |
| 126 | GR | PARKING LAMP LH |
| 129 | G | FRONT WIPER STOP POSITION |
| 131 | Y | FRONT FOG LAMP LH |
| 132 | O | HIGH BEAM LH |
| 133 | L | LOW BEAM RH [With halogen lamp] |
| 133 | Y | LOW BEAM RH [With LED lamp] |
| 134 | BR | WASHER LEVEL SW GND |
| 135 | P | HORN CONT |
| 136 | R | FR WIPER RELAY CONT |
| 137 | V | FR WIPER HI/LO RELAY CONT |
| 138 | G | BRAKE FLUID LEVEL SW SIG |
| 139 | L | WASHER LEVEL SW SIG |
| 140 | Y/GR | HOOD SWITCH STATUS 2 |
| 141 | R | WARM START |
