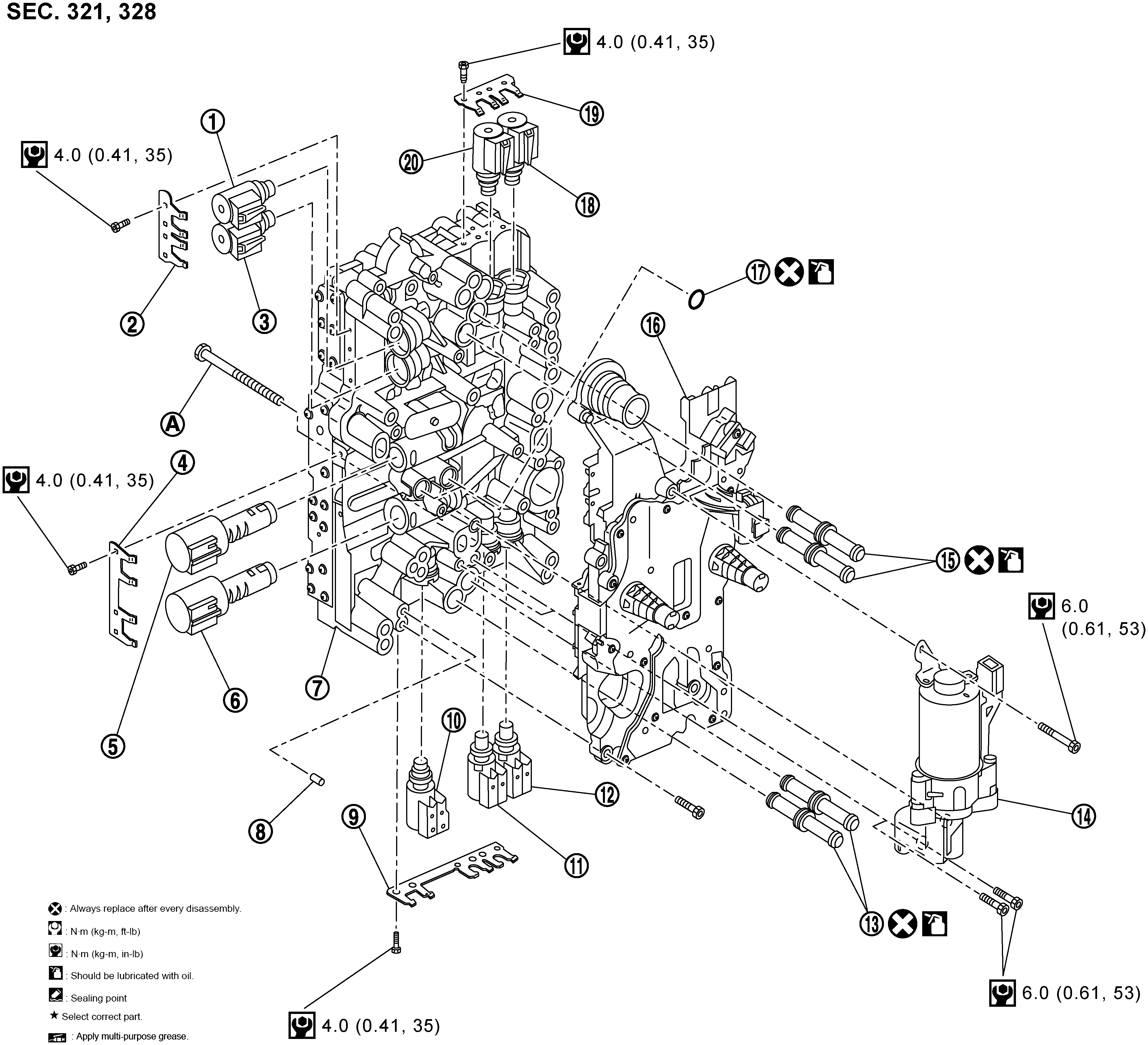

Exploded View

Fig 1: Control Valve, TCM, Electric Oil Pump With Torque Specification

Courtesy of NISSAN NORTH AMERICA, INC.

Shift rod control valve C	End panel	Shift rod control valve B
End panel	K1 clutch regulation valve	K2 clutch regulation valve
Valve housing	Guide sleeve	End panel
Park pawl switchover valve	Gear cylinder pressure valve	Shift rod control valve D
Pipe	Electric oil pump	Pipe
TCM	O-ring	System pressure control valve
End panel	Shift rod control valve A
: For the tightening torque, refer to Disassembly and Assembly .
: Always replace after every disassembly.
: N.m (kg-m, in-lb)
: Apply transaxle fluid
