Removal and Installation: Assembly

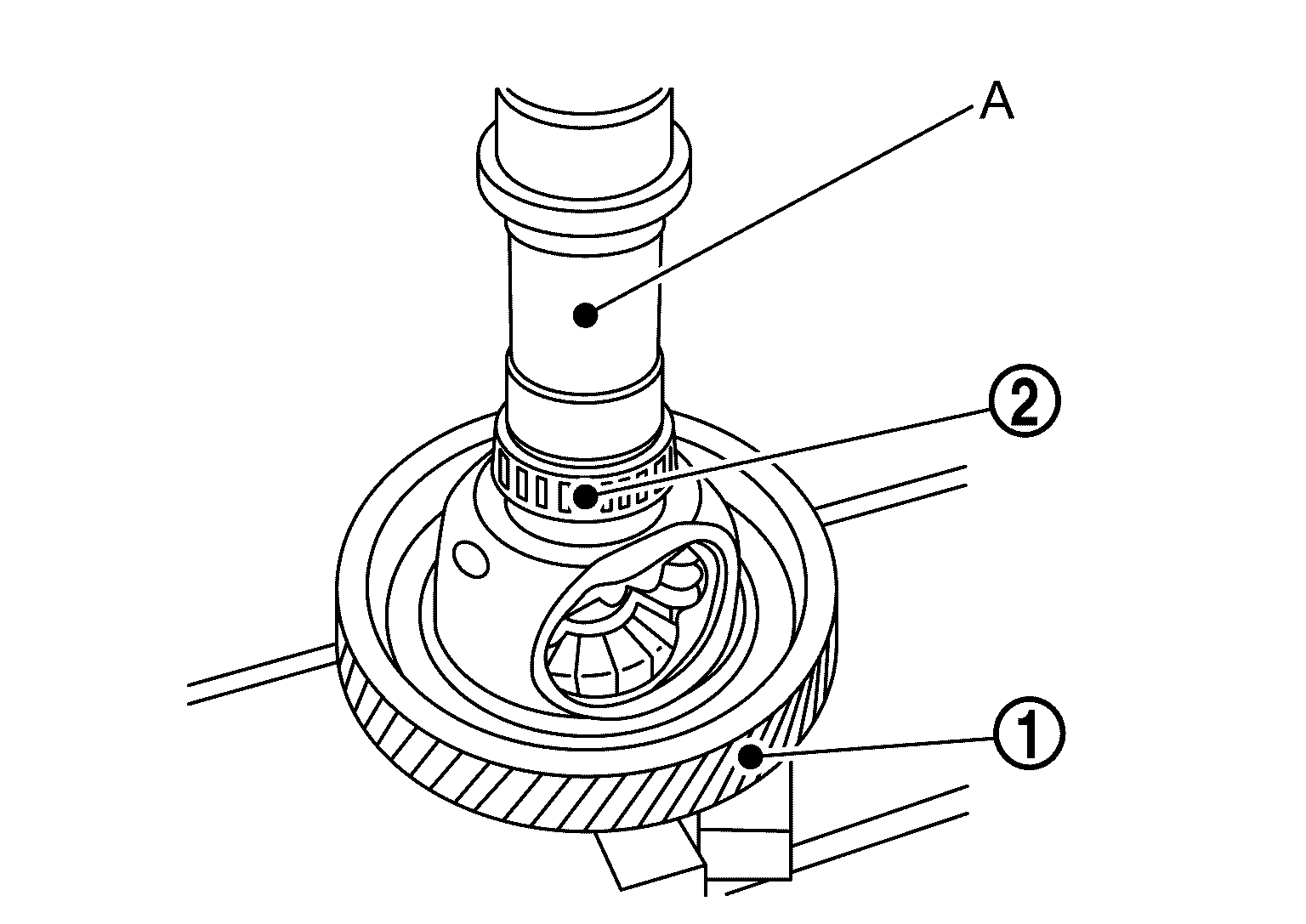

Press inner race of each differential side bearing SYMBOL to final drive assembly SYMBOL all the way to the end, using the sleeve (A) [SST: KV315H0350 (TechMate No. -) (DAIMLER tool No. 203 589 00 14 00)].

GNSJSDIA8869Z-869Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: Check the appearance for abnormality and damage, and check that the rotating part rotates smoothly. Replace if any malfunction is found.
