Removal and Installation: Removal
- Disconnect battery negative terminal.
- Remove rear seat cushion. Refer to Exploded View
.
- Remove center hinge bracket. Refer to Exploded View
.

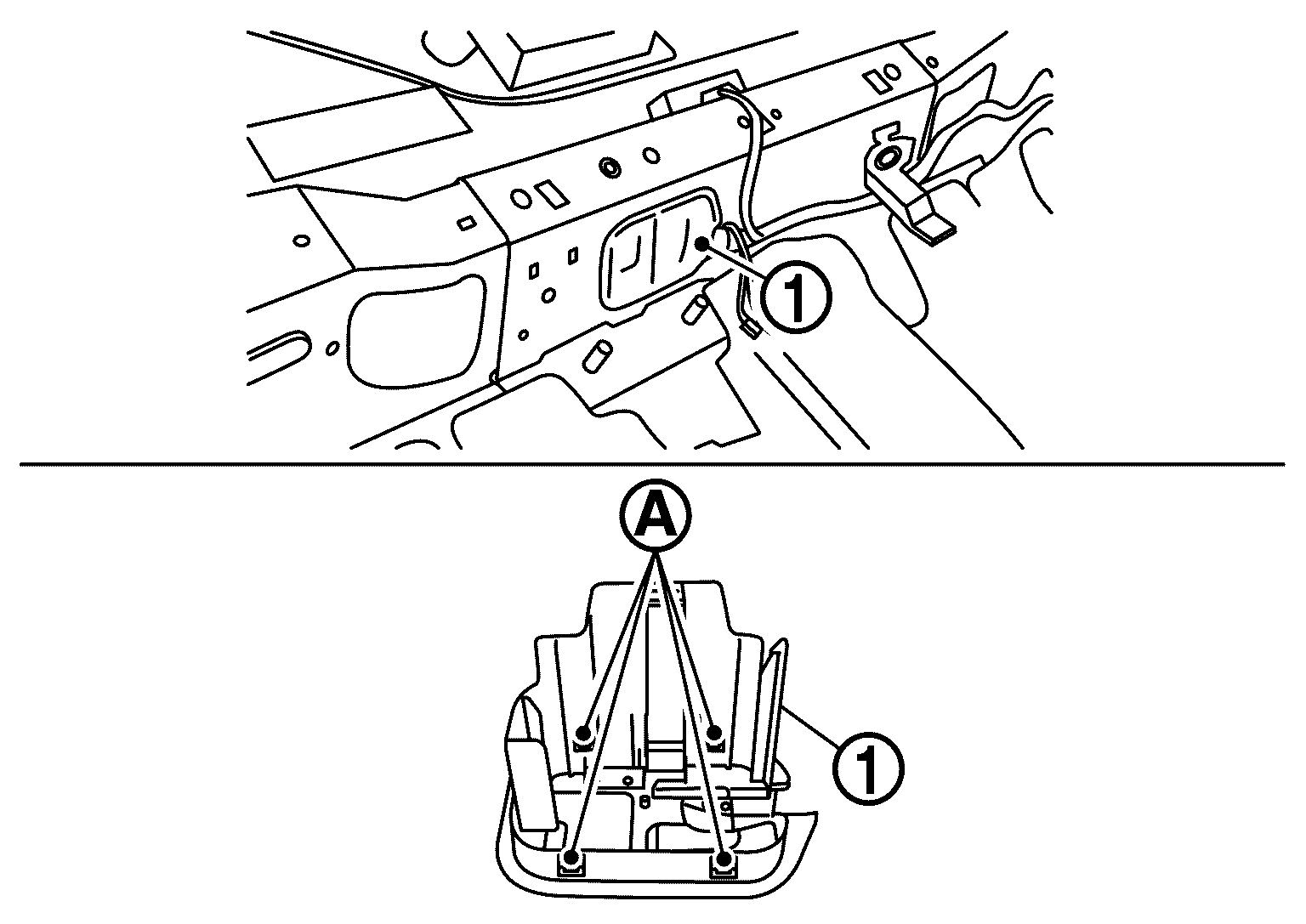

- Disengage the pawls
of the cover
, and pull forwards to remove.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
- Remove FPCM from cover.
- Disconnect FPCM harness connectors.
