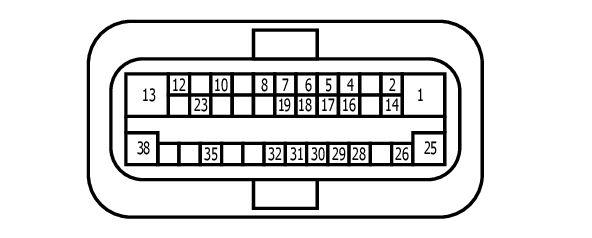

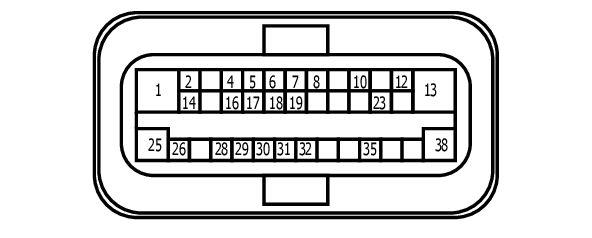

Electronic Stability Program Control Unit Connector End View (E46)
Connector Types: MB_A2465400581
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | R | MOTOR POWER SUPPLY |
| 2 | W | BRAKE PEDAL |
| 4 | P | RIGHT FRONT AXLE RPM SENSOR SIGNAL |
| 5 | GR | BRAKE VACUUM SENSOR POWER SUPPLY |
| 6 | B | BRAKE LIGHT SWITCH-L |
| 7 | R | BATTERY POWER SUPPLY |
| 8 | Y | LFET FRONT AXLE RPM SENSOR SIGNAL |
| 10 | O | STANDSTILL CONTROL (SSC) STATUS |
| 12 | P | BRAKE VACUUM SENSOR SIGNAL |
| 13 | BR | GROUND (MOTOR) |
| 14 | G | CAN-L |
| 16 | B | RIGHT FRONT AXLE RPM SENSOR POWER SUPPLY |
| 17 | Y | RIGHT REAR AXLE RPM SENSOR POWER SUPPLY |
| 18 | BR | LFET REAR AXLE RPM SENSOR SIGNAL |
| 19 | W | LFET FRONT AXLE RPM SENSOR POWER SUPPLY |
| 23 | B | BRAKE VACUUM SENSOR GROUND |
| 25 | P | VALVE RELAY POWER SUPPLY |
| 26 | W | CAN-H |
| 28 | R | BATTERY POWER SUPPLY |
| 29 | P | RIGHT REAR AXLE RPM SENSOR SIGNAL |
| 30 | V | BRAKE LIGHT SWITCH-H |
| 31 | GR | LFET REAR AXLE RPM SENSOR POWER SUPPLY |
| 32 | L | BRAKE LIGHT SWITCH GROUND |
| 35 | R | BRAKE LIGHT SWITCH POWER SUPPLY |
| 38 | B | GROUND (VALVE) |
