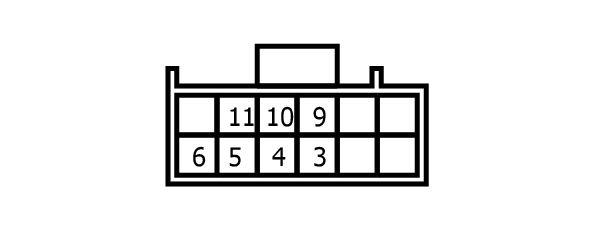

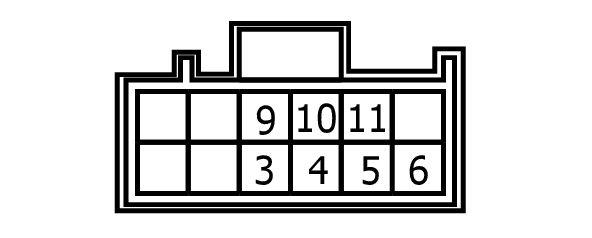

Fuel Pump Control Module Connector End View (M136)
Connector Types:
MB_A0265456226
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 3 |
G |
SENSOR POWER SUPPLY |
| 4 |
V |
FUEL PRESSURE SENSOR |
| 5 |
O |
SENSOR GROUND |
| 6 |
GR |
IGNITION SIGNAL |
| 9 |
L |
POWERTRAIN CAN-L |
| 10 |
W |
POWERTRAIN CAN-H |
| 11 |
L |
FUEL PUMP ACTIVATION REQUEST |
