Overhead Control Panel Control Unit Connector End View (M148)

Connector Types:  MB_A1645450728

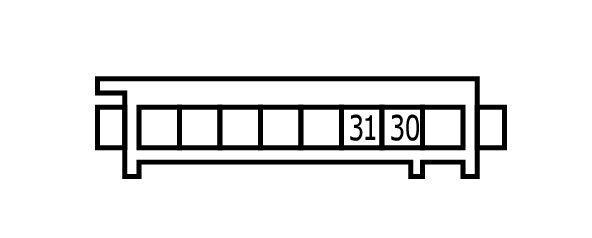

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

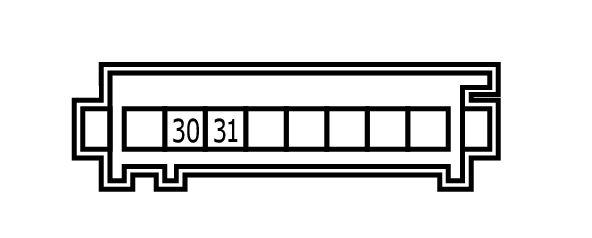

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
30	BR	SOS SWITCH LED SIGNAL
31	G	SOS SWITCH SIGNAL
