Overhead Control Panel Control Unit Connector End View (M171)

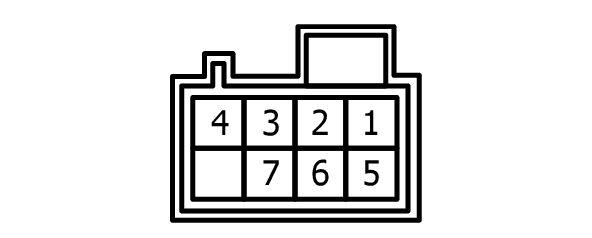

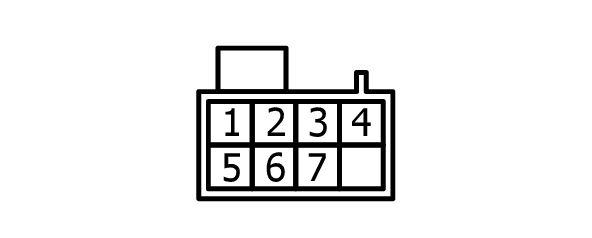

Connector Types:
MB_A0255458926
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
O |
COMM LINE |
| 2 |
L |
INSIDE MIRROR LAMP LH PWR |
| 3 |
R |
INSIDE MIRROR LAMP RH PWR |
| 4 |
W |
INSIDE MIRROR PWR |
| 5 |
BR |
INSIDE MIRROR LAMP GND |
| 6 |
G |
AMBIENT LAMP (INSIDE MIRROR) PWR |
| 7 |
BR |
INSIDE MIRROR GND |
