Overhead Control Panel Control Unit Connector End View (M595)

Connector Types:  A0395456028

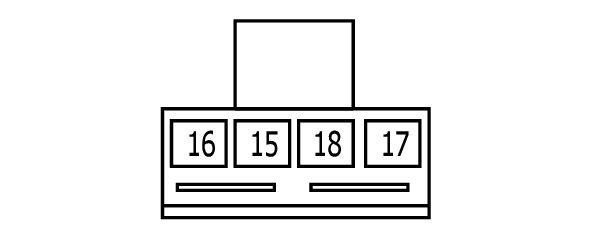

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

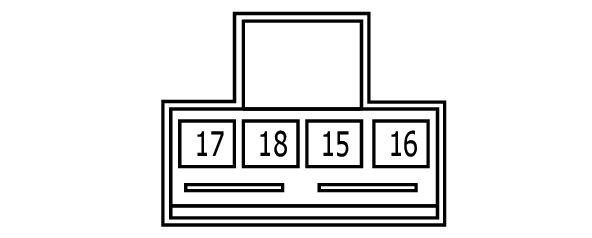

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
15	L	ROOM LAMP PWR
16	R	ROOM LAMP GND
17	O	REAR MAP
18	Y	REAR MAP
